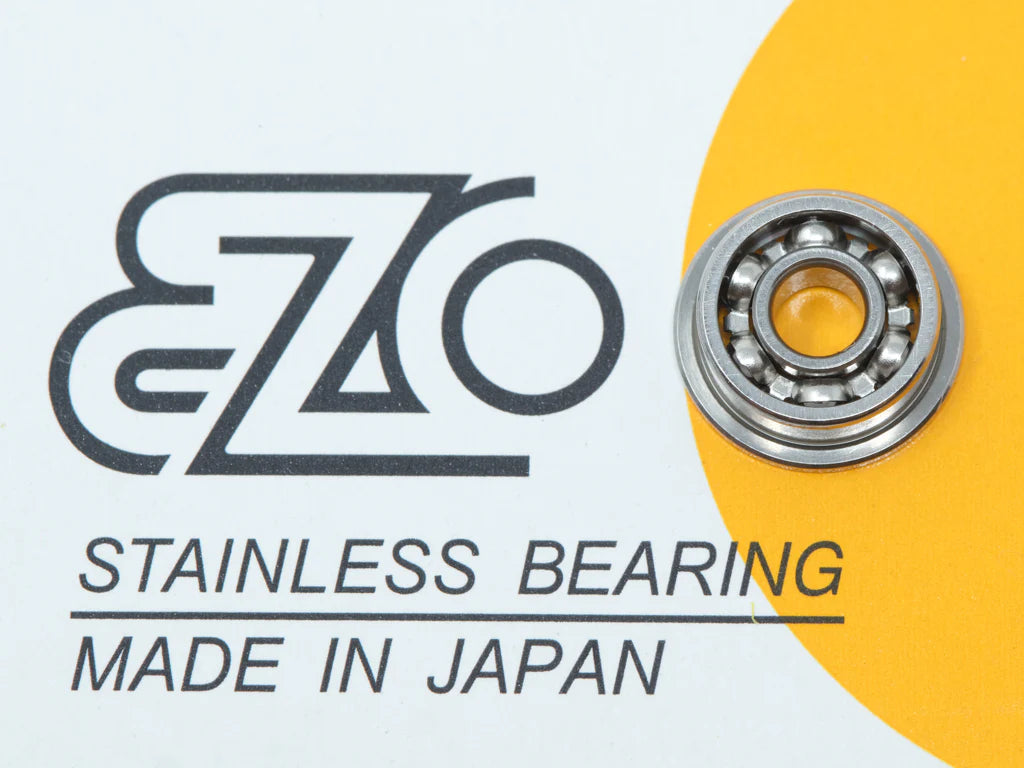

EZO 8mm J-Caged Stainless Steel Ball Bearings

EZO 8mm J-Caged Stainless Steel Ball Bearings

$39.99 USD
$39.99 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.
EZO J-Caged Bearings are premium Japanese-manufactured components widely considered the gold standard for high-performance airsoft builds. Unlike standard crown-caged bearings, the J-caged design utilizes a two-piece steel ribbon that is ball-guided to reduce frictional torque and ensure even force distribution. This makes them significantly more robust for high-stress applications like DSG or high-velocity setups. These bearings are renowned for their exceptionally low resistance, which can lead to a measurable increase in rate of fire. To achieve a professional-grade installation, Northmark Vault recommends using Loctite 638 or a similar sleeve retainer to adhere them to the shell, alongside Prometheus centering pins to ensure every bearing is perfectly flush and centered.

Technical Specifications:

  • Precision Manufacturing: Produced in Japan from high-quality stainless steel for superior corrosion resistance and strength.
  • J-Caged Architecture: Features a two-piece steel ribbon cage designed to maintain precise ball alignment and withstand higher vibration levels.
  • Low Profile Flange: Engineered with a thin 0.68mm flange thickness, providing maximum internal room for precise gear shimming.
  • Dimensions: Standard 3mm (inner) x 8mm (outer) x 3mm (width), compatible with all 8mm gearbox shells.
  • Installation Recommendation: Northmark Vault suggests Loctite 638 for secure bonding and Prometheus centering pins for axial alignment.
  • Reduced Friction: Ultra-smooth races and precision ball geometry significantly decrease electrical system draw and heat generation.
  • Maintenance: Supplied with silicone oil for storage; requires degreasing and repacking with high-quality grease prior to use.
  • Selector Plate Clearance: Low-profile design minimizes interference with Version 2 selector plates, though minor modification may still be required.
