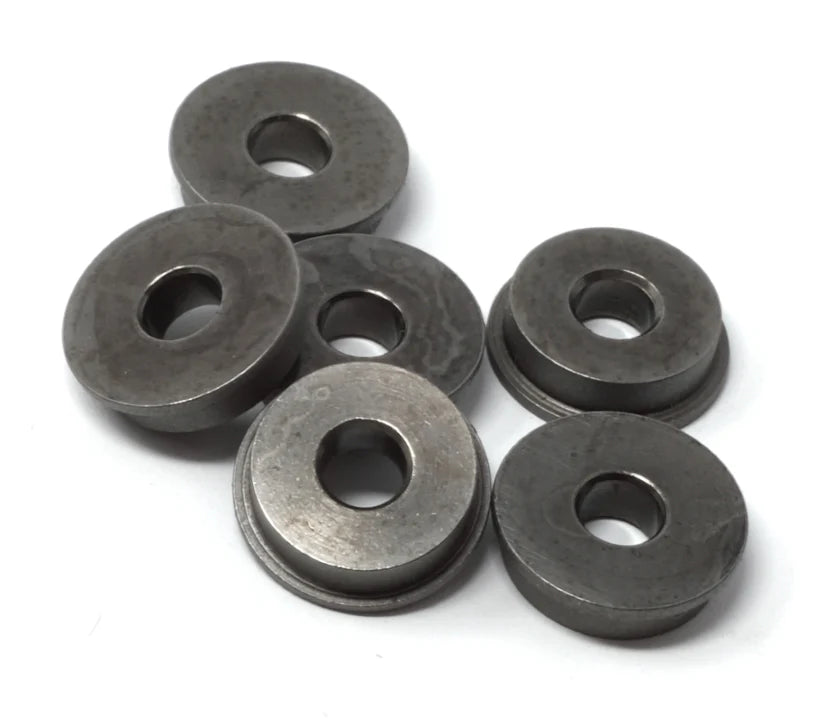

F.L.T. 8mm CNC Steel Bushings

F.L.T. 8mm CNC Steel Bushings

$20.00 USD
$20.00 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.
The F.L.T. 8mm CNC Steel Bushings are professional-grade internal components widely considered the strongest available in the airsoft industry. Unlike standard sintered or PIM bushings that typically have a Rockwell hardness of HRC 25–35, these are CNC-machined from high-speed tool steel and heat-treated to a hardness of HRC 50–55. Each bushing is burnished in a vibratory tumbler and has reamed gear axle openings to ensure a precision fit and ultra-smooth rotation. To achieve a professional-grade installation, Northmark Vault recommends using Loctite 638 or a similar sleeve retainer to adhere them to the shell, alongside Prometheus centering pins to ensure every bushing is perfectly flush and centered.

Technical Specifications:

  • Material Construction: CNC-machined from high-speed tool steel for extreme durability and lifespan in any setup.
  • Precision Tolerances: Axle openings are reamed to a tight tolerance of +/- 0.001" for consistent gear alignment.
  • Hardness Rating: Rockwell hardness of HRC 50–55, significantly outperforming standard aftermarket bushings.
  • Low Profile Fit: Designed with a 0.56mm flange thickness to maximize shimming space and clear external selector plates.
  • Installation Recommendation: Northmark Vault suggests using Loctite 638 for adhesion and Prometheus centering pins for alignment.
  • Surface Treatment: Media-blasted outer surface to provide a porous texture for enhanced sleeve retainer or epoxy adhesion.
  • Internal Finish: Burnished and reamed axle holes provide a zero-resistance surface that simulates the speed of bearings with the strength of solid steel.
  • Size Specification: Standard 8.00mm outer diameter optimized for high-stress builds like high-RPS DSGs or heavy spring setups.
