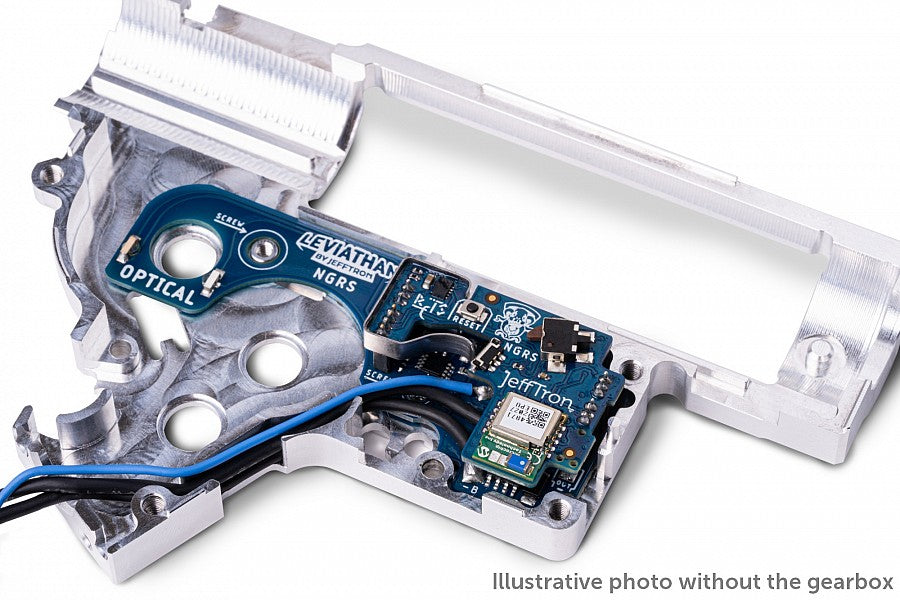

• Jefftron Leviathan NGRS optical MOSFET installed in Tokyo Marui Next Gen Recoil Shock gearbox

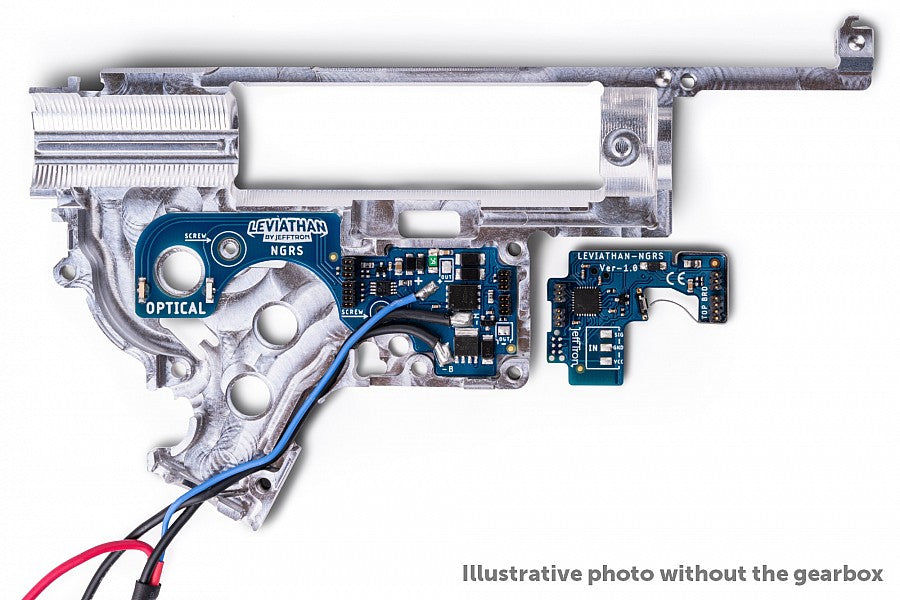

  • Jefftron Leviathan NGRS optical MOSFET layout showing control board and wiring in Tokyo Marui Next Gen Recoil Shock gearbox

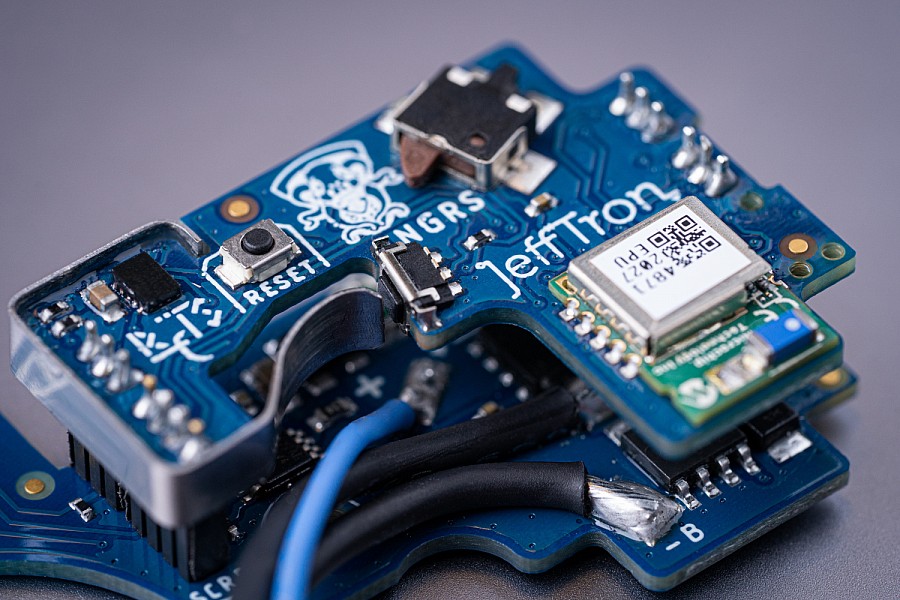

  • Close-up of Jefftron Leviathan NGRS optical MOSFET control board with Real Feel Trigger System and Bluetooth module

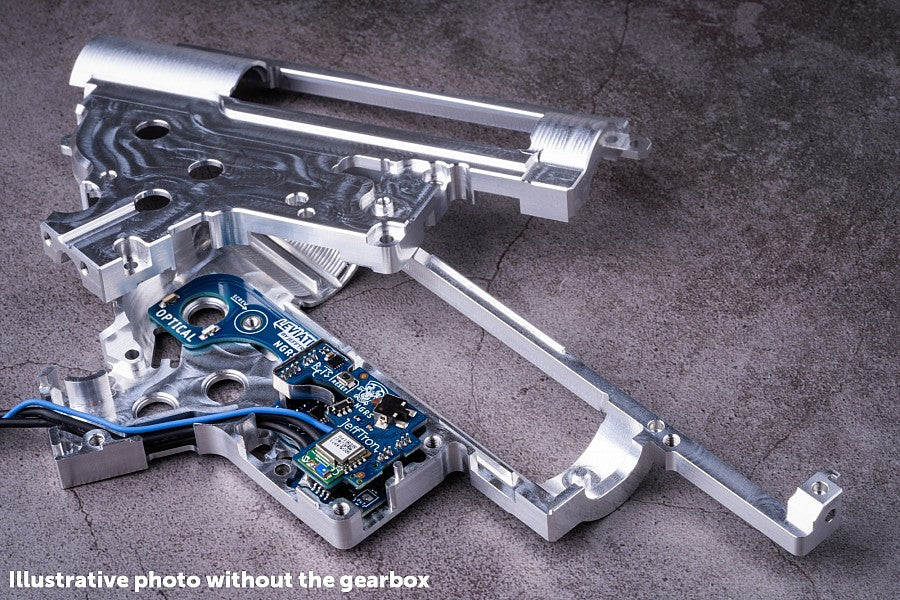

  • Jefftron Leviathan NGRS optical MOSFET with Real Feel Trigger System installed in Tokyo Marui Next Gen Recoil Shock gearbox

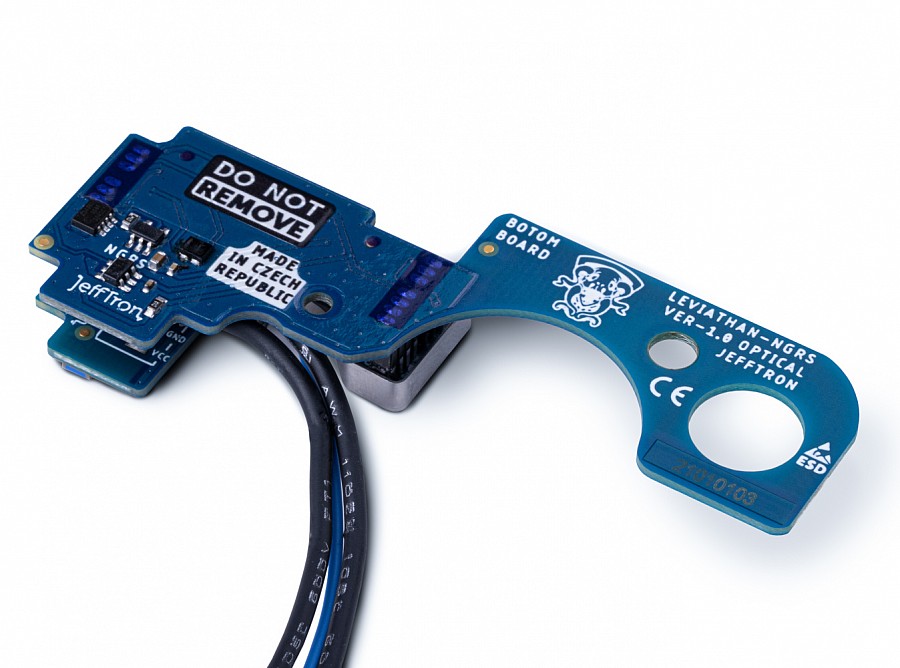

  • Rear view of Jefftron Leviathan NGRS optical MOSFET with Real Feel Trigger System

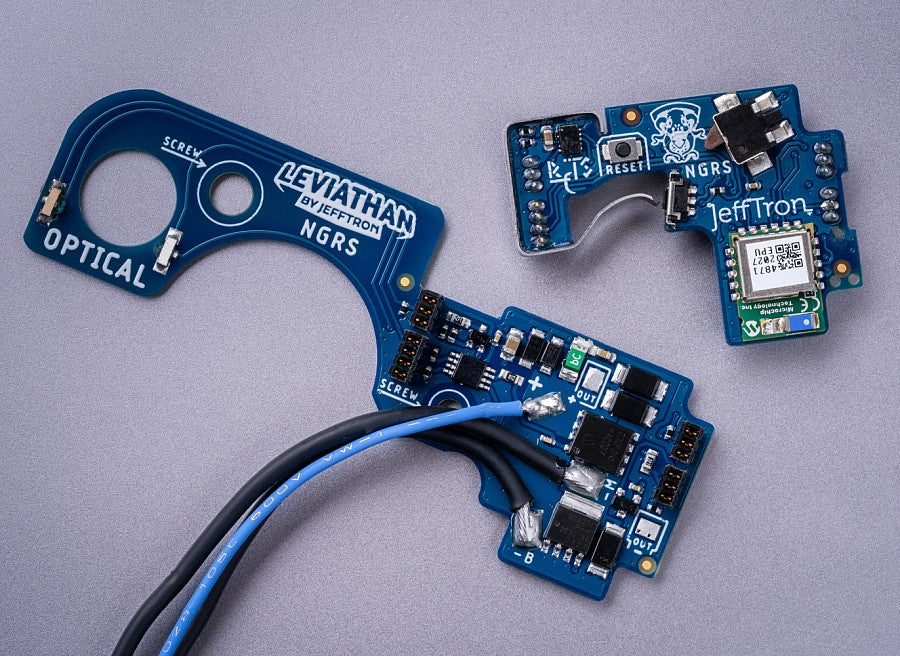

  • Split view of Jefftron Leviathan NGRS optical MOSFET with Real Feel Trigger System components

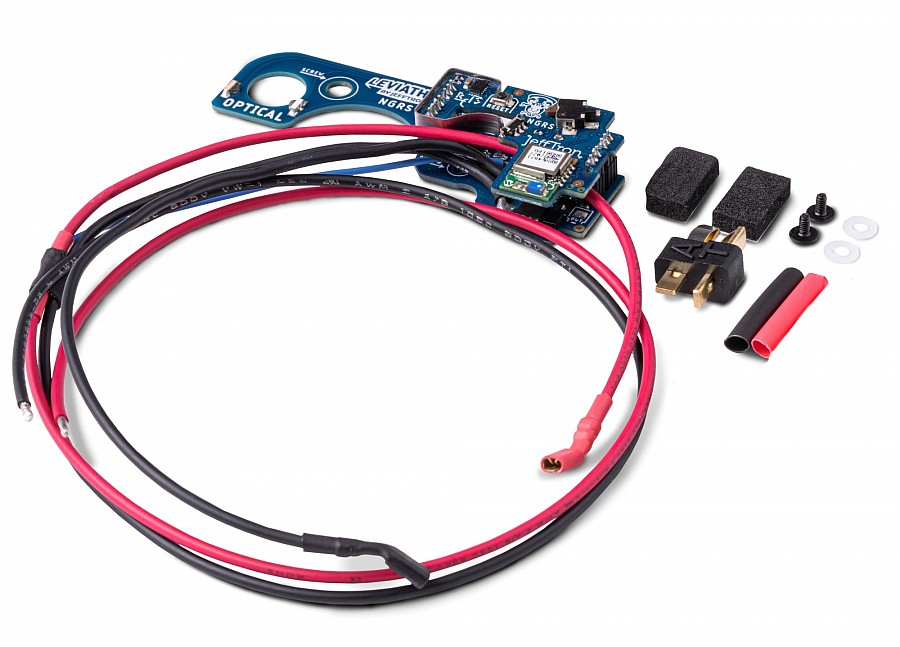

  • Jefftron Leviathan NGRS optical MOSFET package with wiring harness, connectors, and Real Feel Trigger System components
  • Jefftron Leviathan NGRS optical MOSFET retail packaging box with Leviathan branding

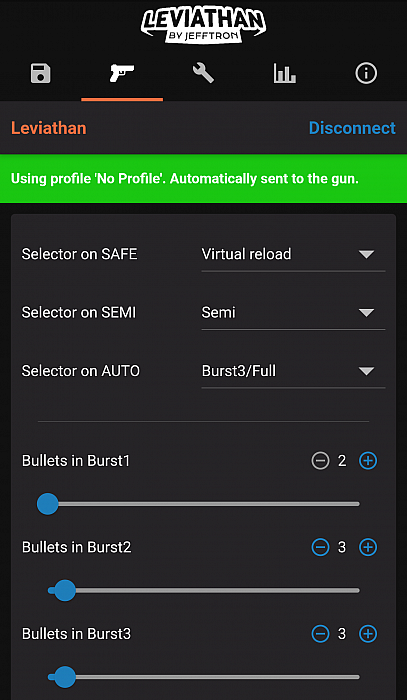

  • Jefftron Leviathan NGRS mobile app interface showing burst fire settings and selector configuration

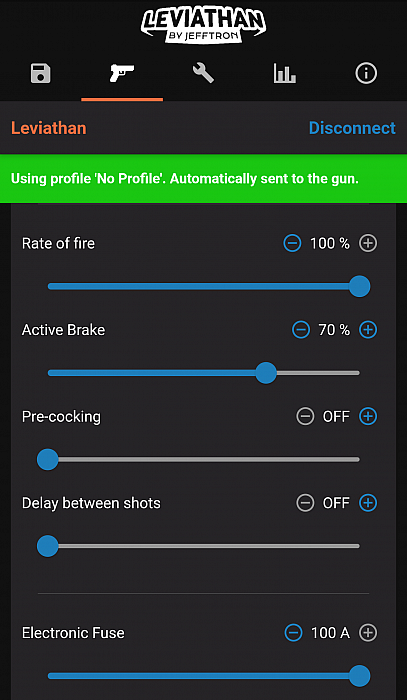

  • Jefftron Leviathan NGRS mobile app interface showing rate of fire, active brake, precocking and electronic fuse settings

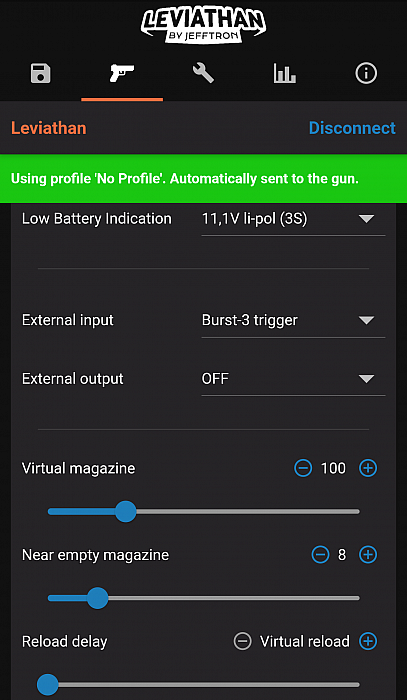

  • Jefftron Leviathan NGRS mobile app interface showing low battery cutoff, external input output and virtual magazine settings

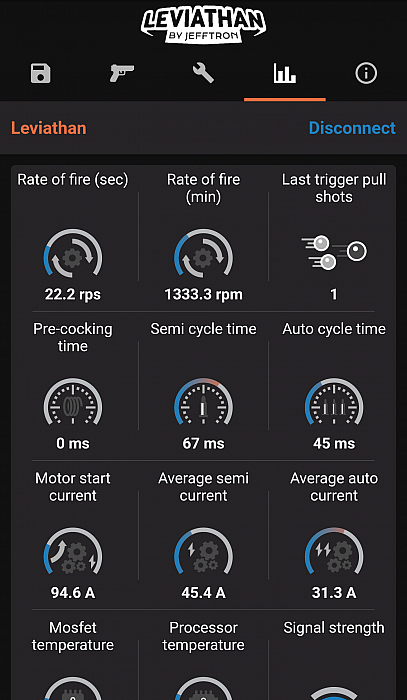

  • Jefftron Leviathan NGRS mobile app statistics screen showing rate of fire, cycle time, current draw and temperature data

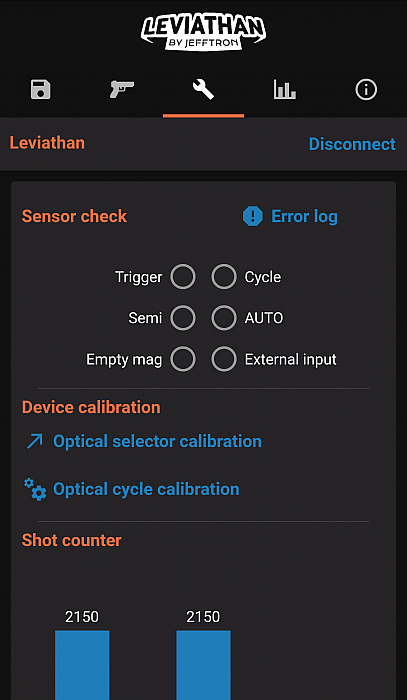

  • Jefftron Leviathan NGRS mobile app calibration screen showing sensor check, selector calibration and cycle calibration options

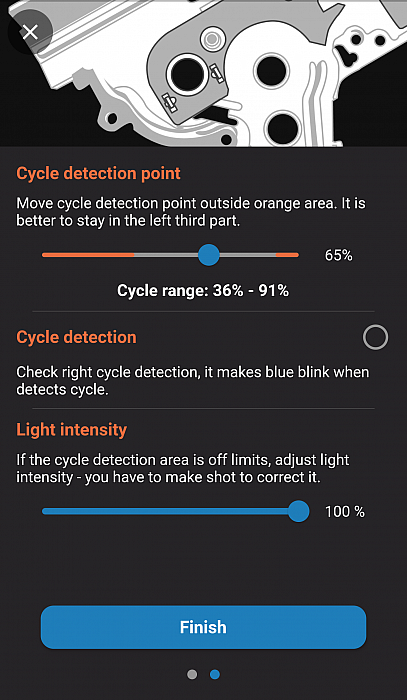

  • Jefftron Leviathan NGRS mobile app showing cycle detection calibration with detection point and light intensity adjustment

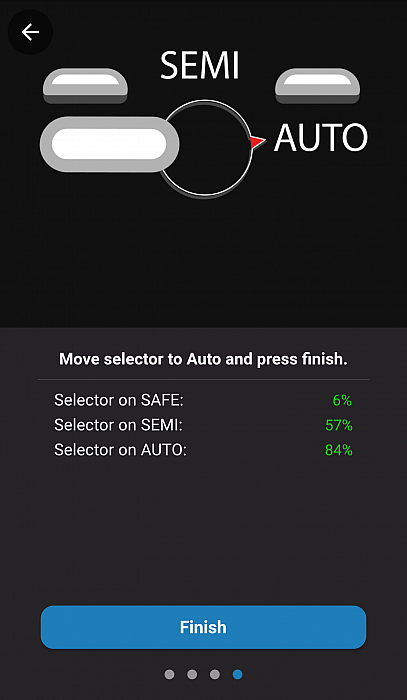

  • Jefftron Leviathan NGRS mobile app showing selector calibration with SAFE, SEMI and AUTO position detection values

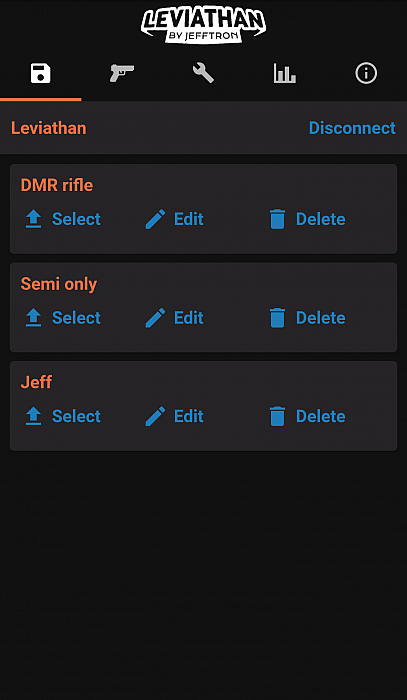

  • Jefftron Leviathan NGRS mobile app showing profile selection menu with saved firing modes and editable presets

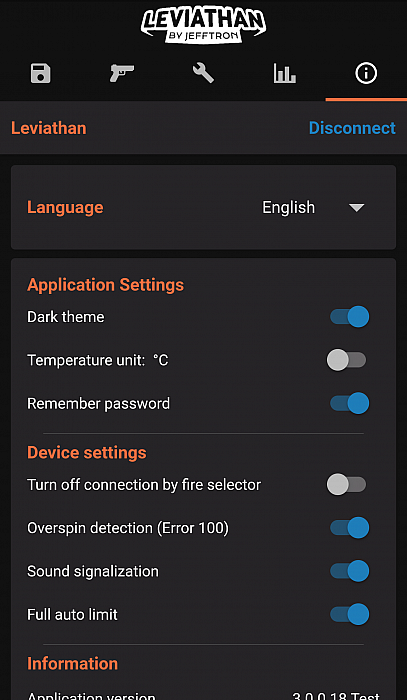

  • Jefftron Leviathan NGRS mobile app settings menu showing language selection, device settings, and configuration options

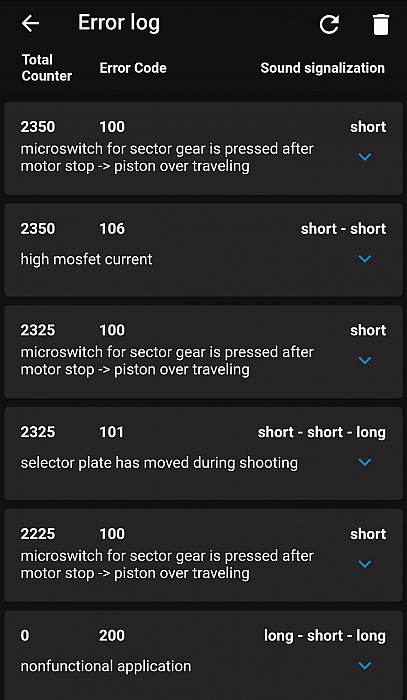

  • Jefftron Leviathan NGRS mobile app error log screen showing diagnostic error codes, microswitch warnings, and mosfet current alerts

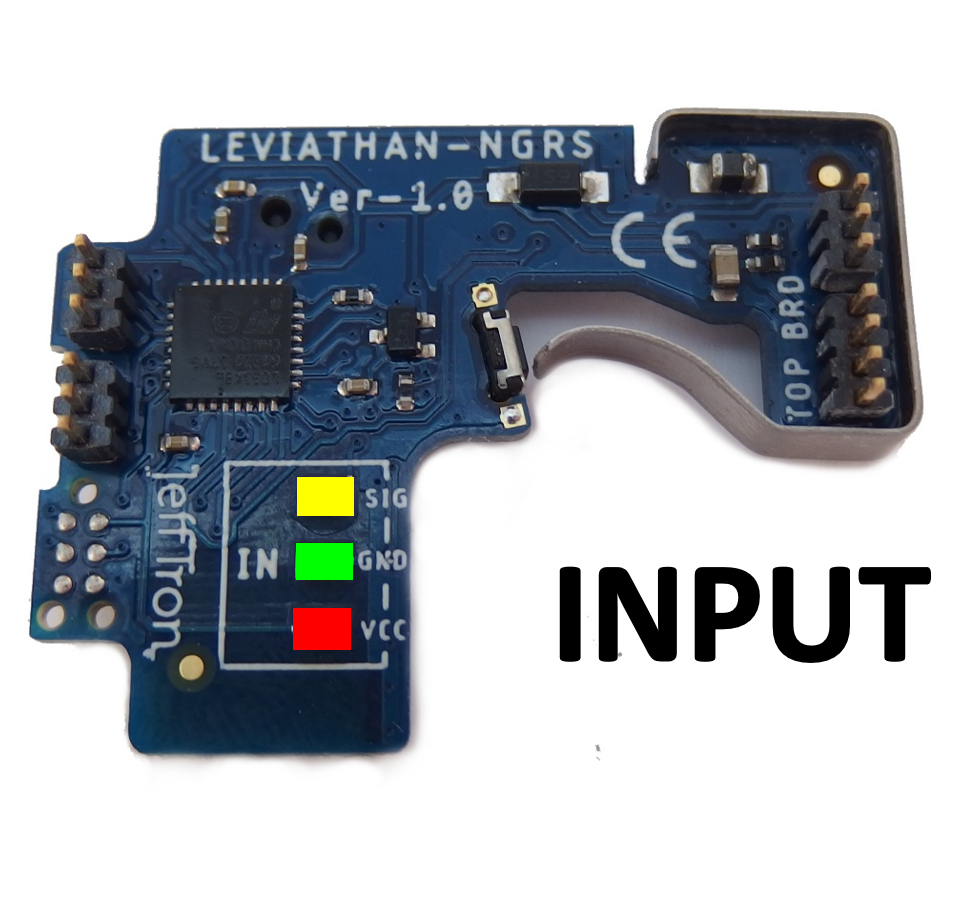

  • Jefftron Leviathan NGRS input wiring diagram showing signal, ground, and VCC pin layout on control board

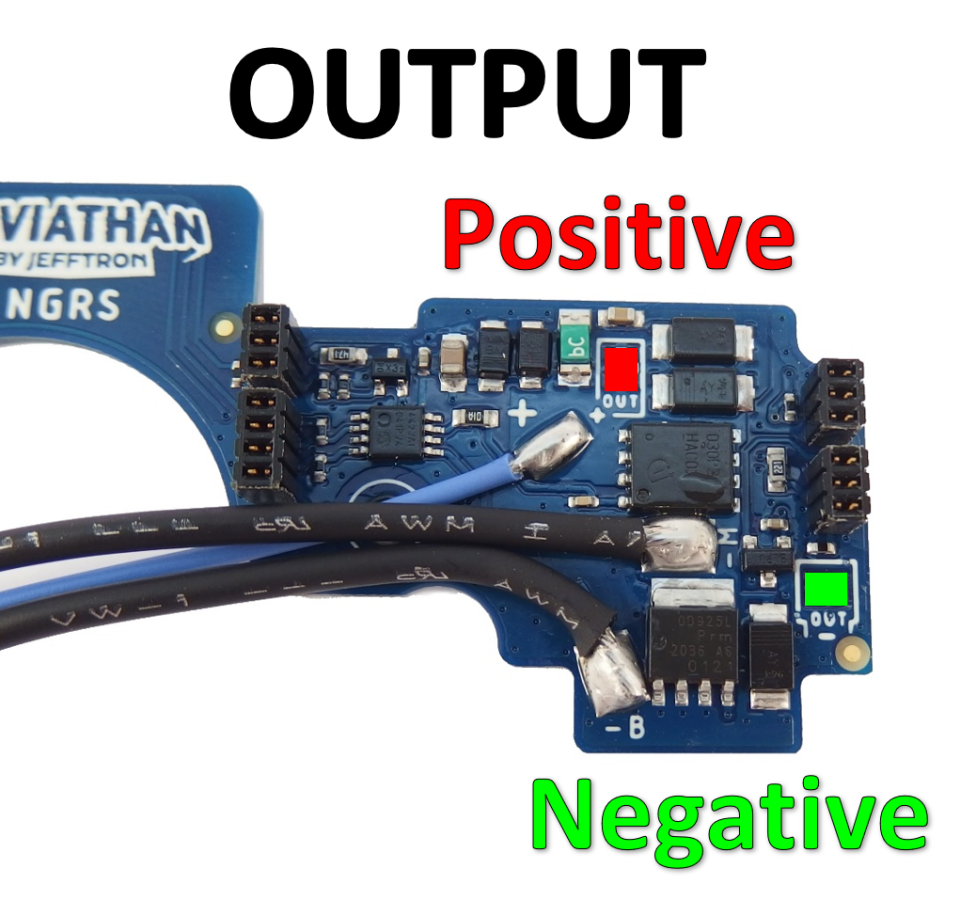

  • Jefftron Leviathan NGRS output wiring diagram showing positive and negative terminals on mosfet control board

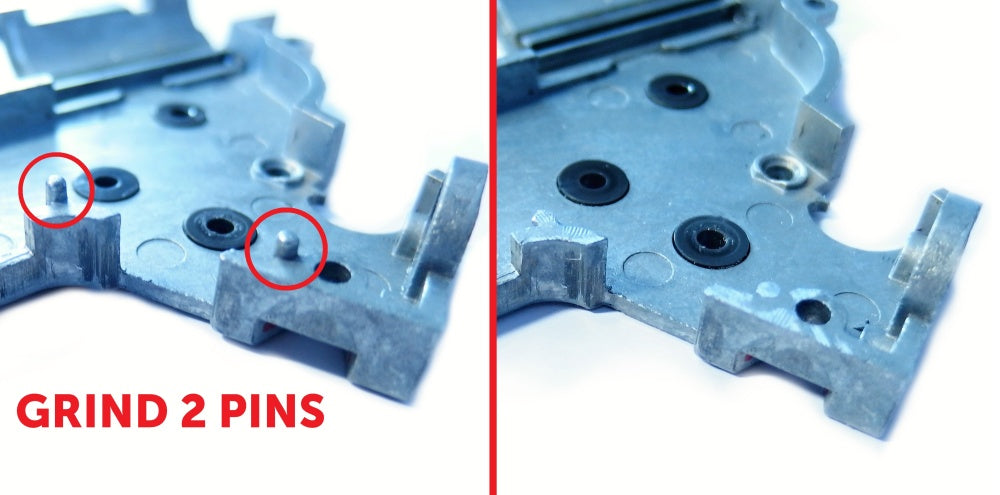

  • Tokyo Marui NGRS gearbox shell showing pins that must be ground down for Jefftron Leviathan installation

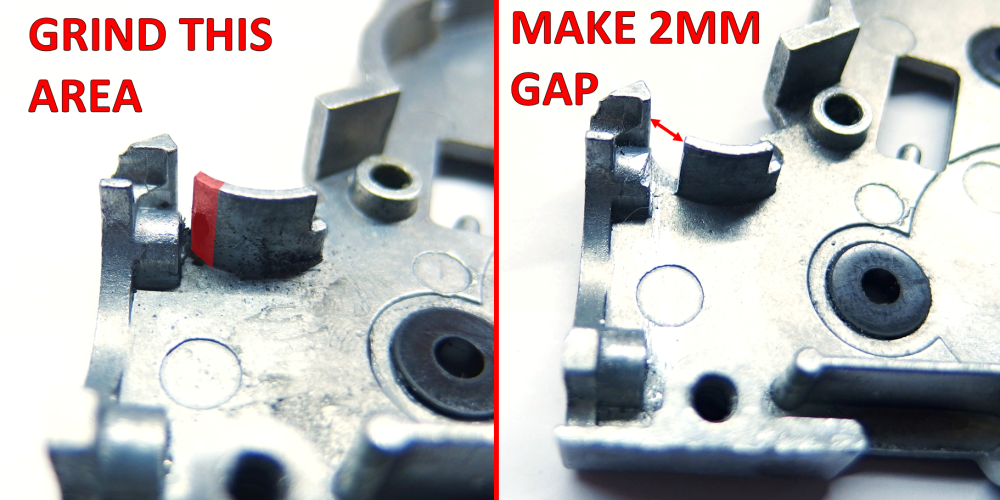

  • Tokyo Marui NGRS gearbox shell modification showing area to grind and 2mm clearance required for Jefftron Leviathan wiring

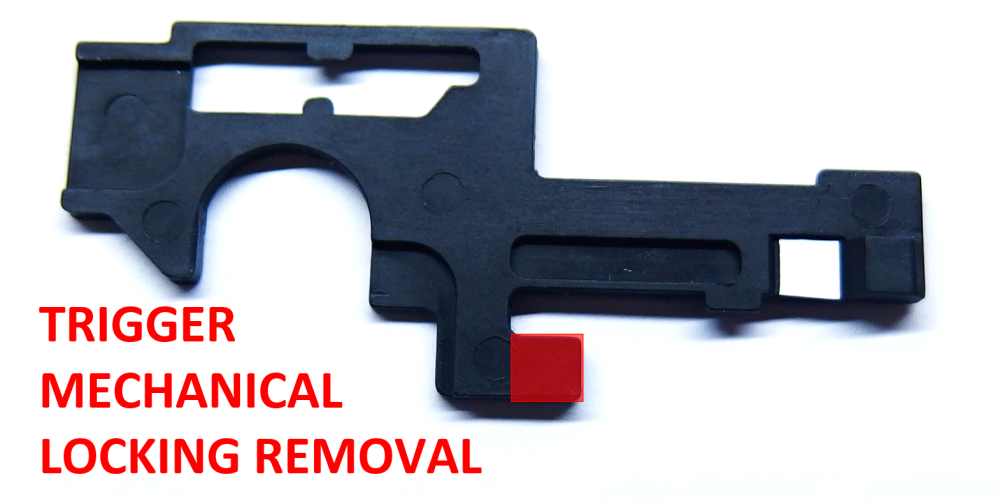

  • Tokyo Marui NGRS selector plate modification showing area to remove trigger mechanical lock for Jefftron Leviathan installation

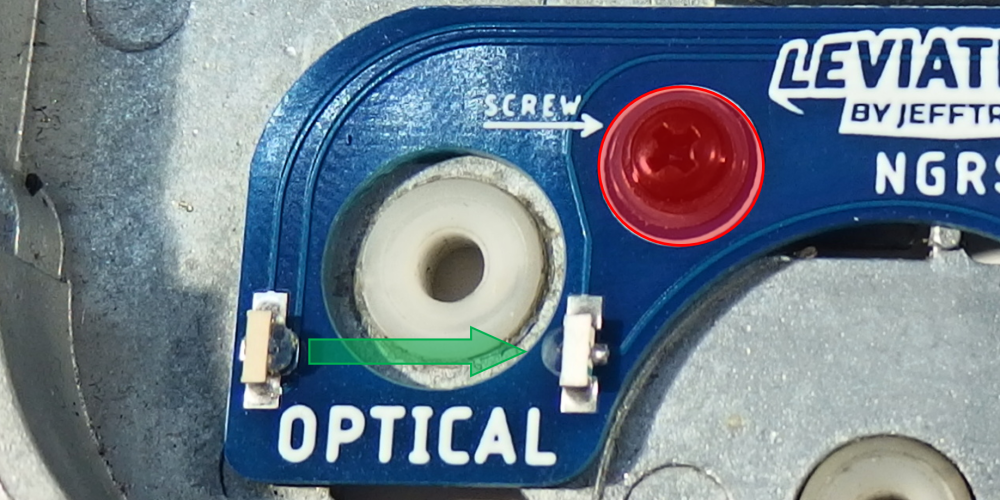

  • Jefftron Leviathan NGRS optical cycle sensor area showing detection point for gearbox cycle timing

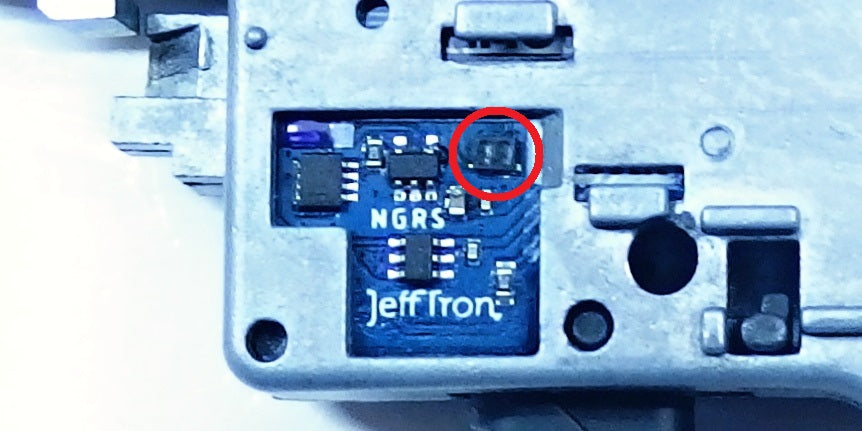

  • Close-up of Jefftron Leviathan NGRS optical cycle sensor inside gearbox with detection point highlighted

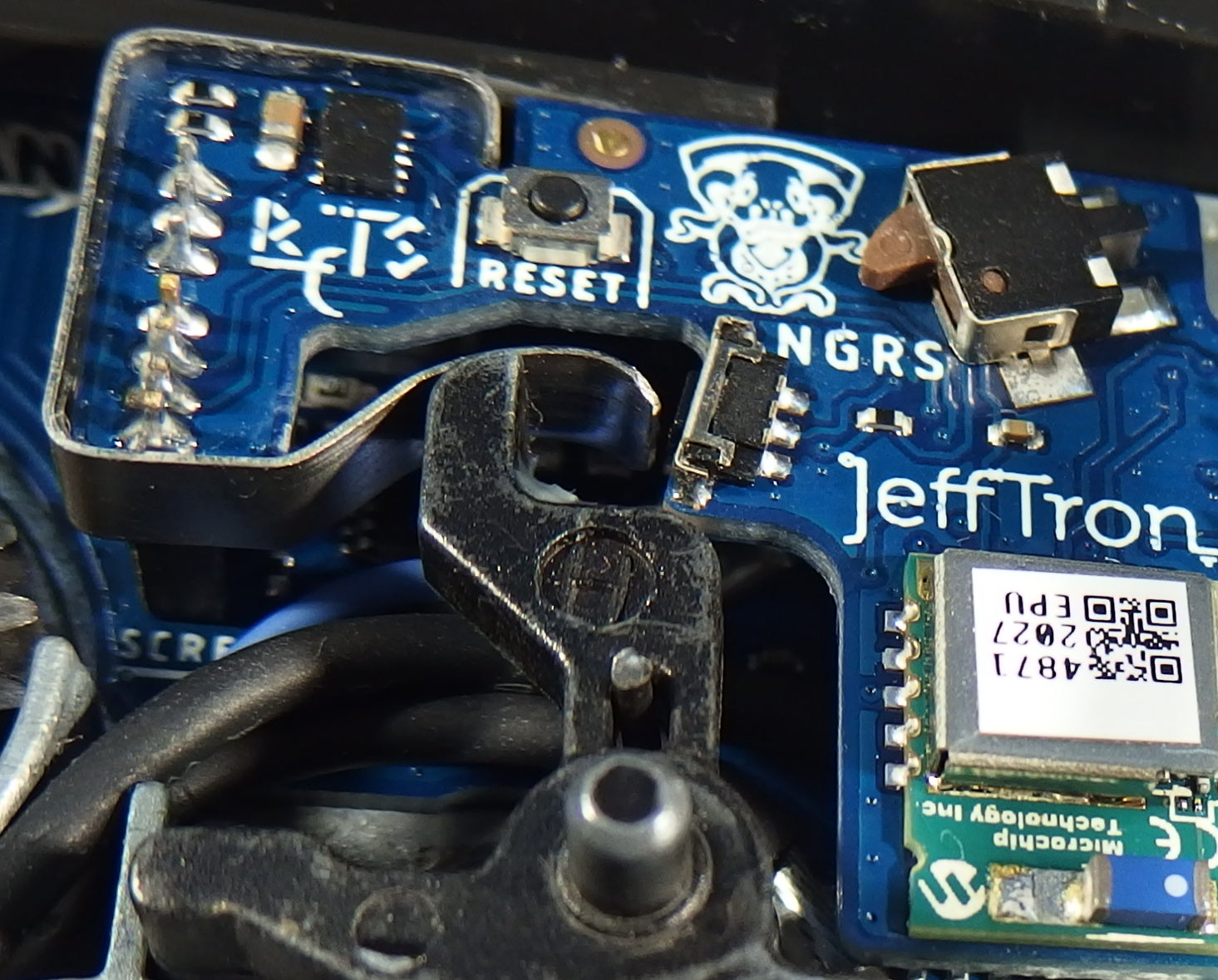

  • Jefftron Leviathan NGRS installed with mechanical trigger contact for real feel trigger system inside gearbox
1 26

Jefftron

Jefftron Leviathan NGRS Optical – Bluetooth Programmable ETU, Rear Wired

Jefftron Leviathan NGRS Optical – Bluetooth Programmable ETU, Rear Wired

$149.99 USD
$149.99 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.
The Jefftron Leviathan NGRS Optical is an advanced Electronic Trigger Unit (ETU) specifically engineered for Tokyo Marui Next Generation Recoil Shock (NGRS) platforms. This rear-wired unit replaces the original trigger contacts, integrating into the gearbox to provide instant trigger response and wireless programming via the Leviathan smartphone app. Unlike other versions, the NGRS model includes the Real Feel Trigger System (RFTS) as an integrated feature, utilizing a spring mechanism to simulate the tactile resistance and reset of a real firearm. It preserves critical NGRS functionality, including empty magazine detection, while offering a suite of professional upgrades like pre-cocking, active braking, and high-voltage support up to 17V. Here at Northmark Vault, we prefer this NGRS MOSFET due to the added realism of the RFTS feature. This brings another added point of realism to add to the simulated recoil and reload function. On top of that, if any issues arise in the field, a vast majority of the time the unit will let you know an error has occurred instead of self-destructing the entire NGRS replica. If that wasn’t enough to sell you on this product, unlike other options on the market, there is no need for an extra Bluetooth or plug-in device for programming. All programming can be accessed with any Bluetooth-capable device!


Technical Specifications:

  • Hybrid Sensor Suite: Combines high-resolution optical sensors for cycle and selector detection with a high-durability tactile trigger switch.
  • Integrated RFTS: Features a built-in Real Feel Trigger System designed to mimic the weight and break of a real firearm trigger.
  • Wireless Connectivity: Built-in Bluetooth for real-time adjustments and firmware updates via the official Leviathan App.
  • Hair Trigger Performance: Equipped with a tactile switch featuring an ultra-short 0.13mm travel for rapid-fire engagement.
  • Custom Fire Modes: Supports independent programming for every selector position, including Semi, Auto, Binary Trigger, and adjustable Burst (2–20 rounds).
  • NGRS Feature Support: Retains the original bolt catch sensor functionality for empty magazine detection and automatic firing cutoff.
  • Protection and Diagnostics: Active monitoring of battery voltage (8.4V–17V), current draw, and temperature with an electronic fuse to prevent internal damage.
  • High-Quality Rear Wiring: Pre-soldered AWG16 power wires and AWG22 signal wires with thin MPPE insulation, designed for buffer tube and stock battery placement.
