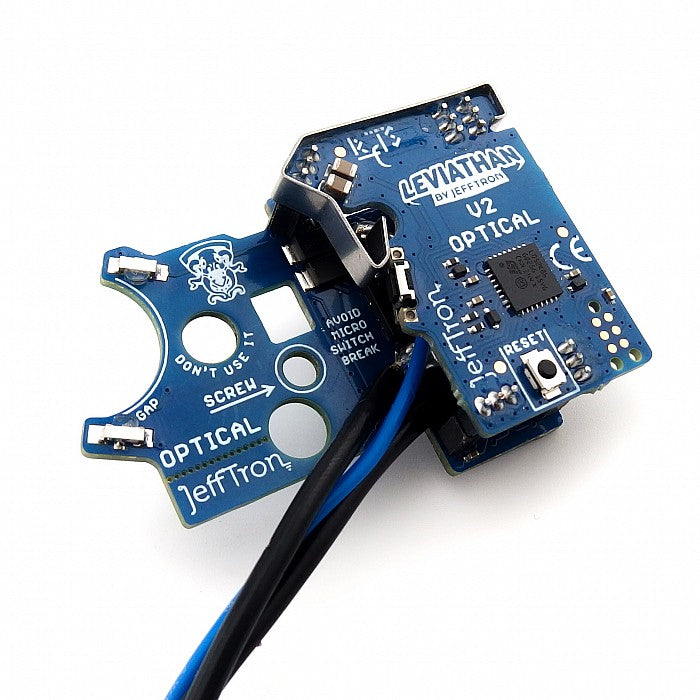

The Jefftron Leviathan V2 Optical is a high-performance Electronic Trigger Unit (ETU) designed for Version 2 gearboxes where the battery is housed in the handguard or front rail. This unit utilizes optical sensors to monitor the sector gear and fire selector, entirely removing the mechanical wear and failure points of traditional trigger contacts. Integrated Bluetooth connectivity allows for instant, real-time adjustments via the Leviathan smartphone app, enabling users to tune firing parameters without disassembly. The front-wired version features a specialized wiring harness with integrated connectors, allowing the front assembly to be easily disconnected from the gearbox for maintenance or battery swaps. Another added benefit of this unit is that it comes from the factory with a quick detach point on the wiring harness. Most other units have to be cut and a new QD connector must be soldered on. With this done from the factory, it saves the end user both time and often money and it makes this a truly drop-in unit. This is our preferred MOSFET here at Northmark Vault due to its adaptability in almost every single style of build! Whether you’re going for a realistic trigger feel and break or a CQB spam machine with a hair trigger, all of it can be achieved with this nifty AEG electrical unit!
Technical Specifications:

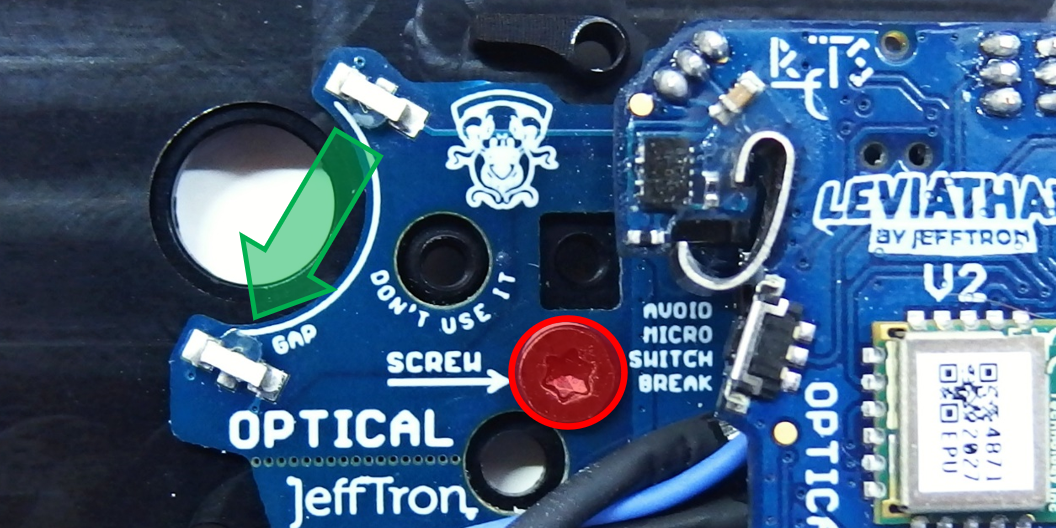

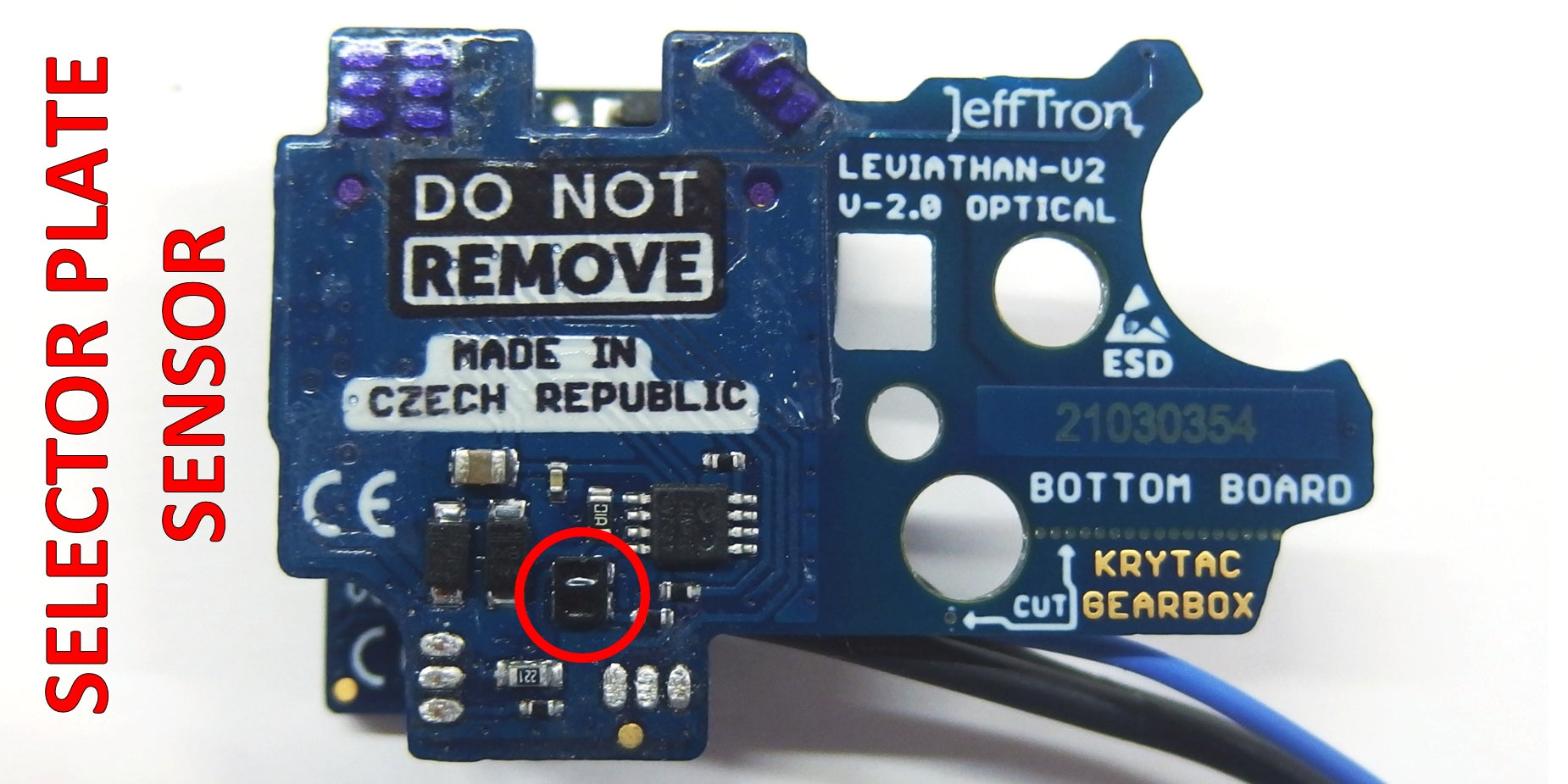

Sensor System: Employs high-resolution optical sensors for sector gear cycle detection and fire selector position, ensuring perfect timing and durability.

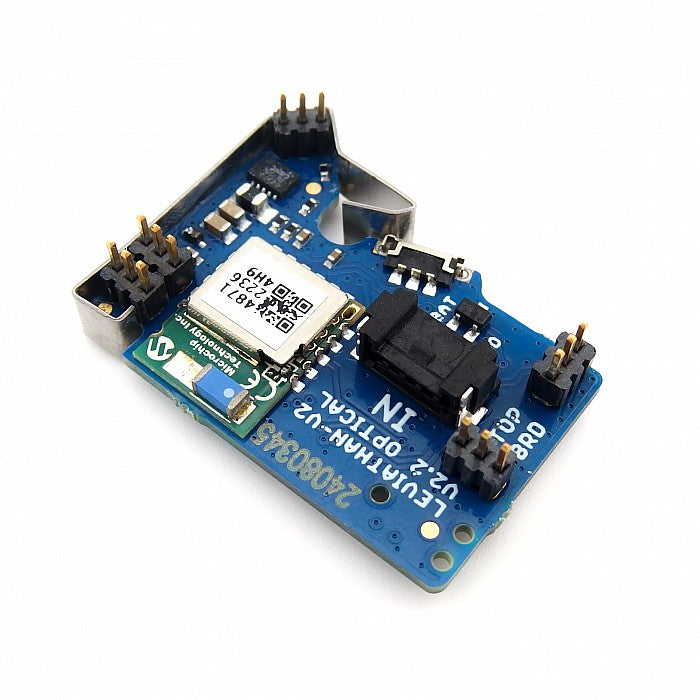

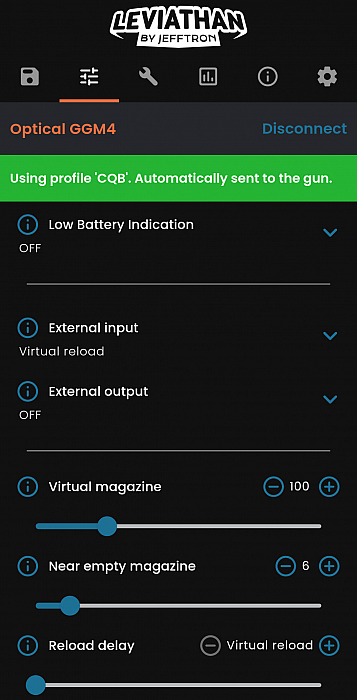

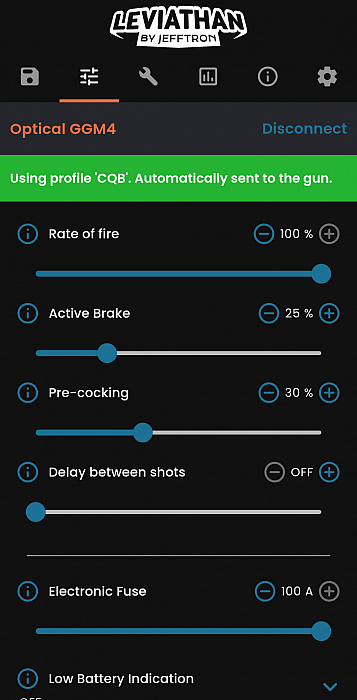

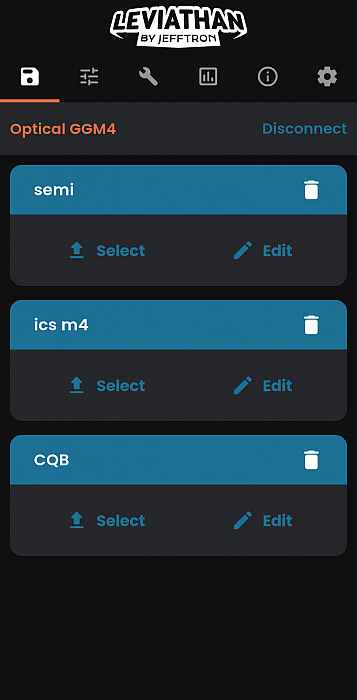

Wireless Configuration: Built-in Bluetooth for real-time setting changes and firmware updates via the official Leviathan App (iOS and Android).
Integrated RFTS: Features the Real Feel Trigger System, a built-in spring mechanism that simulates the tactile resistance and reset of a real firearm.

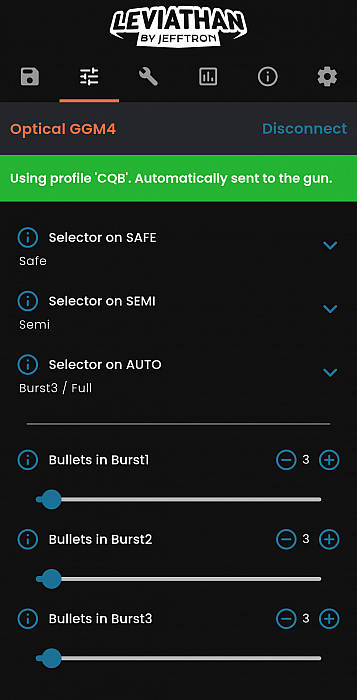

Advanced Firing Modes: Customizable selector settings including Semi, Binary Trigger, Auto, and adjustable Burst (2–20 rounds).

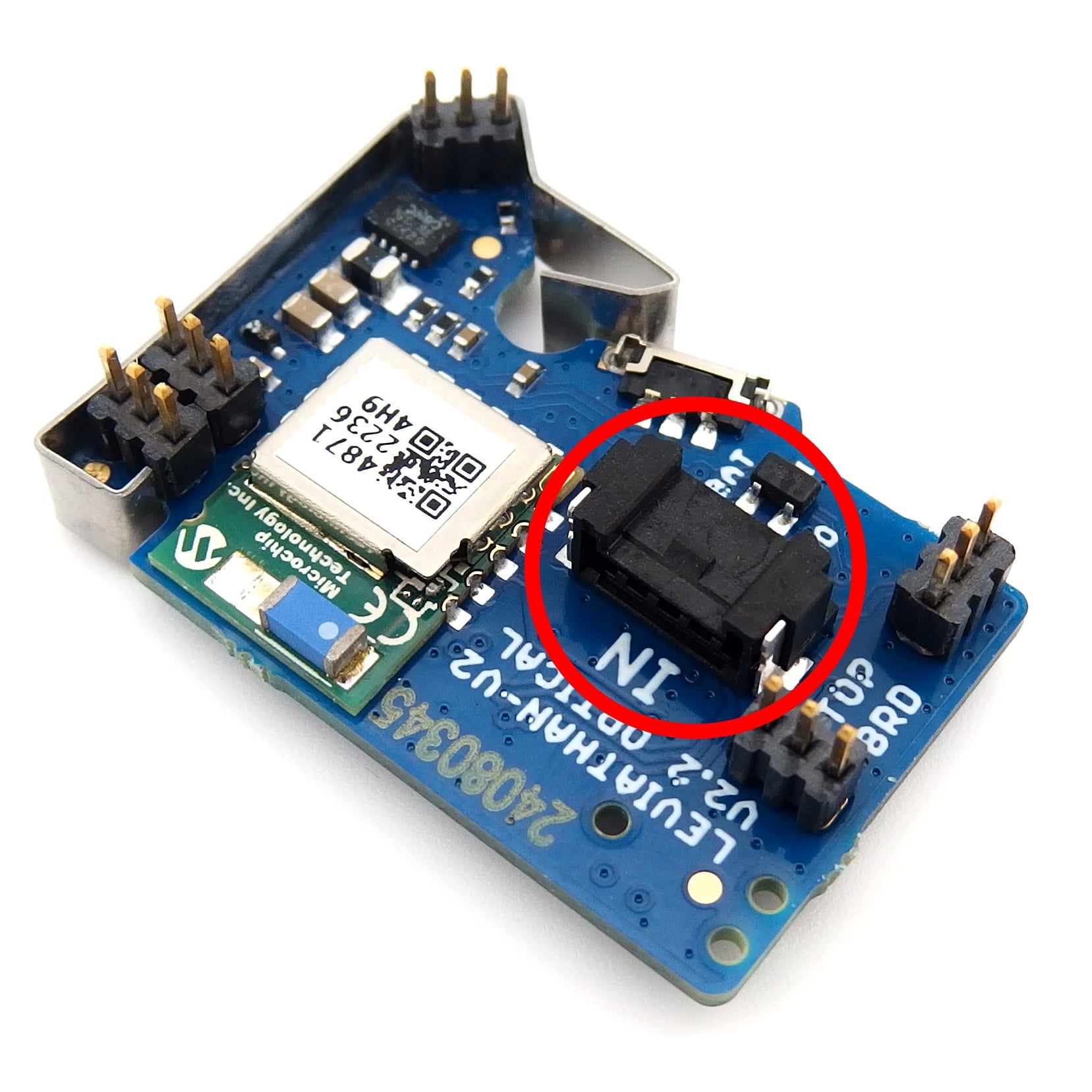

Input and Output Ports: Includes a dedicated external input port for accessories like virtual reload buttons and output pads for powering tracer units or electric magazines.

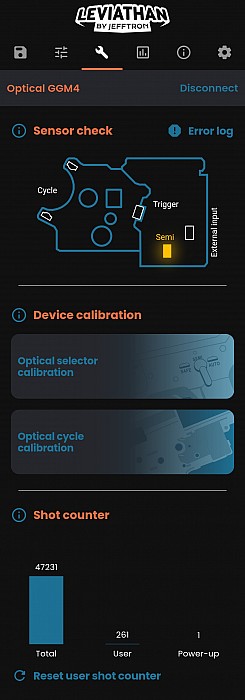

System Diagnostics: Active monitoring of battery voltage (up to 17V), motor current, and internal temperature with a built-in electronic fuse.

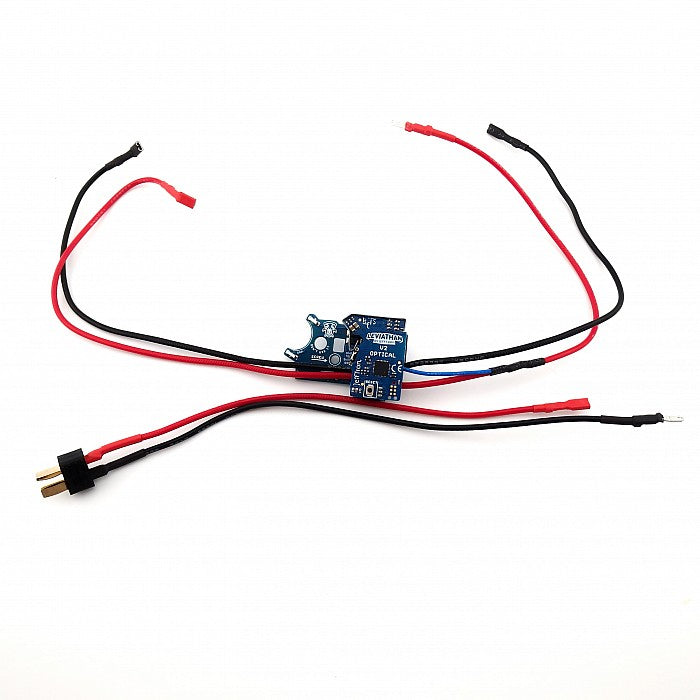

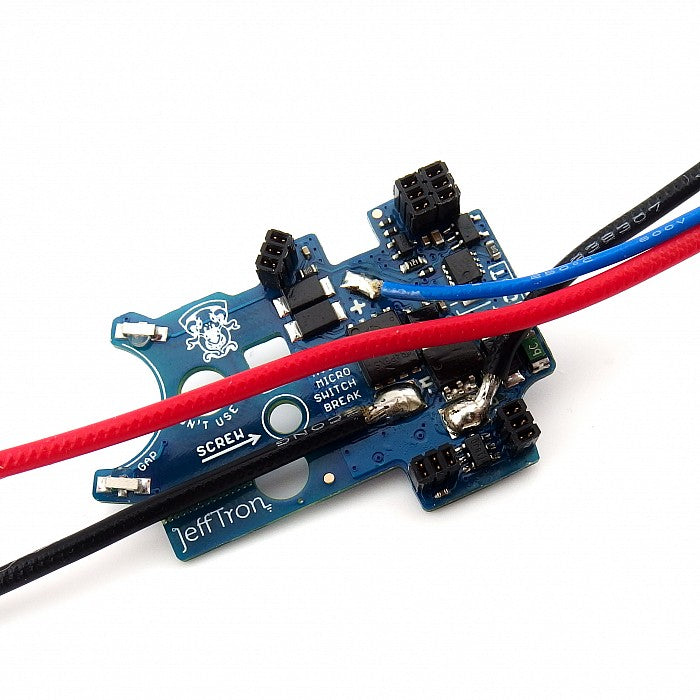

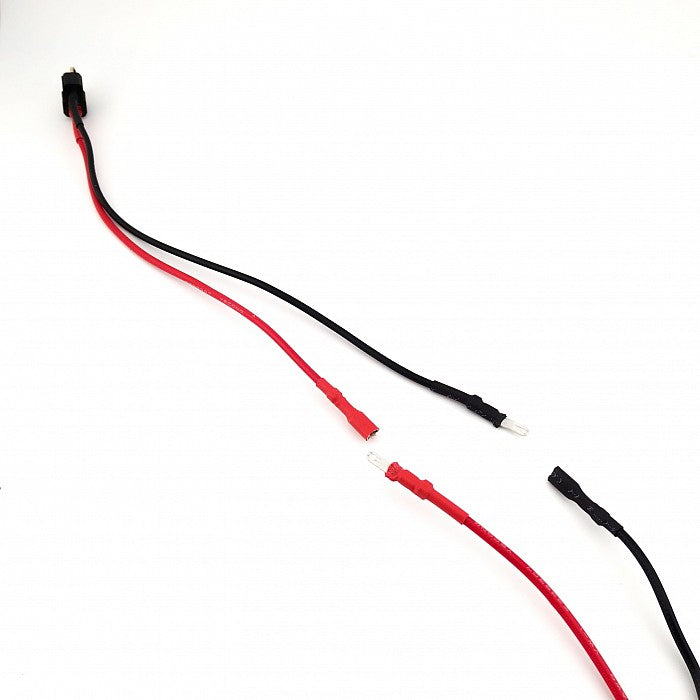

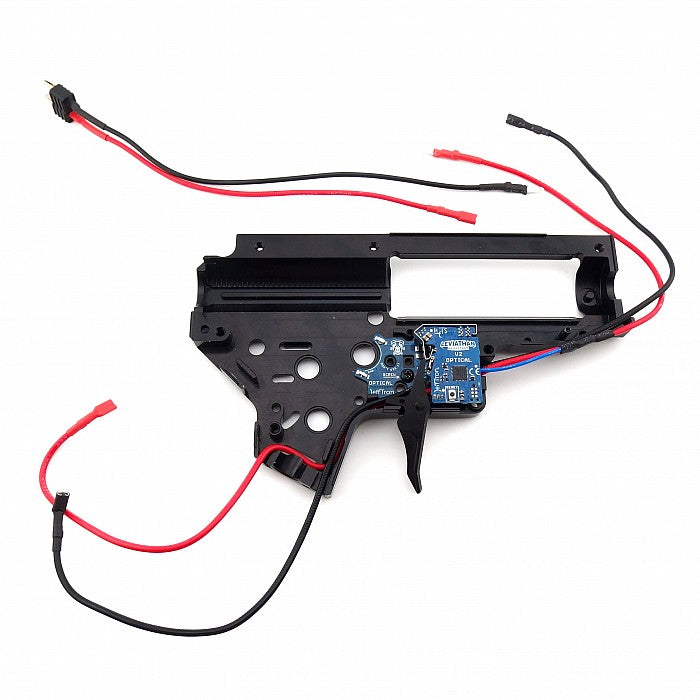

Premium Front Wiring: Equipped with high-quality AWG16 power wires and AWG24 signal wires with thin, hard Teflon (PTFE) insulation for easy routing.

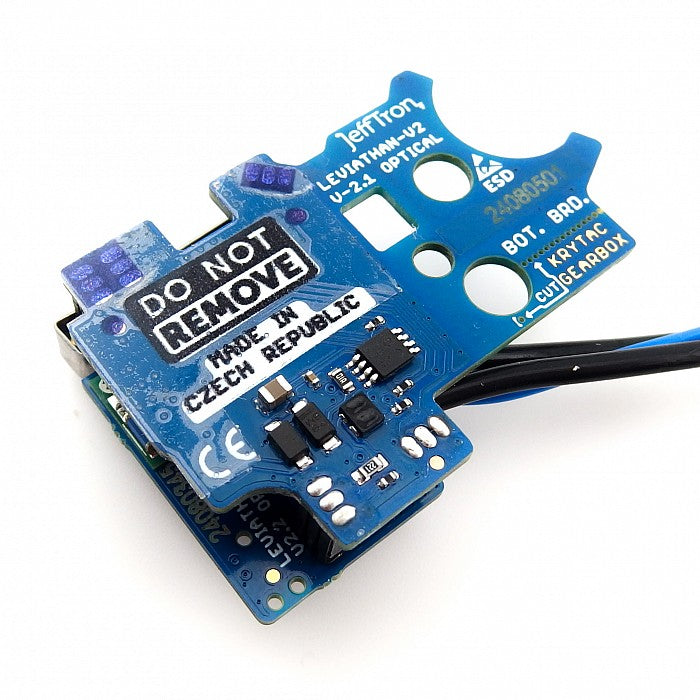

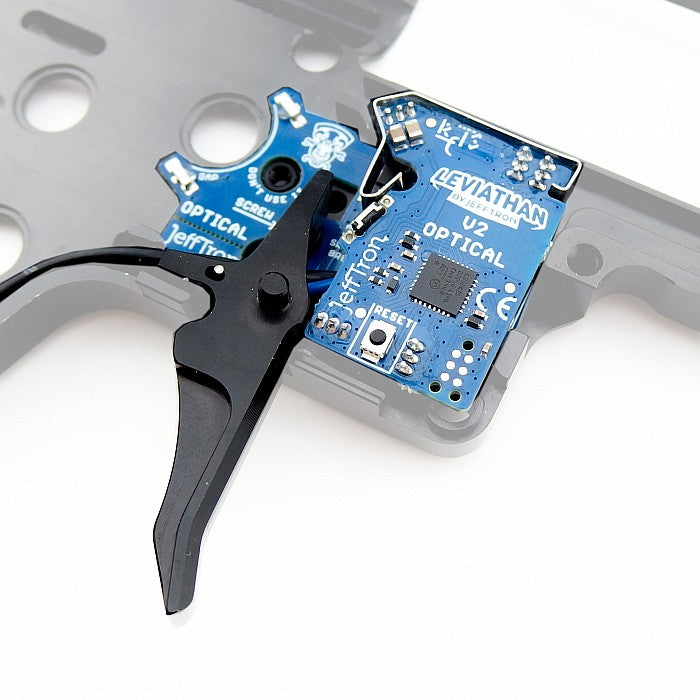

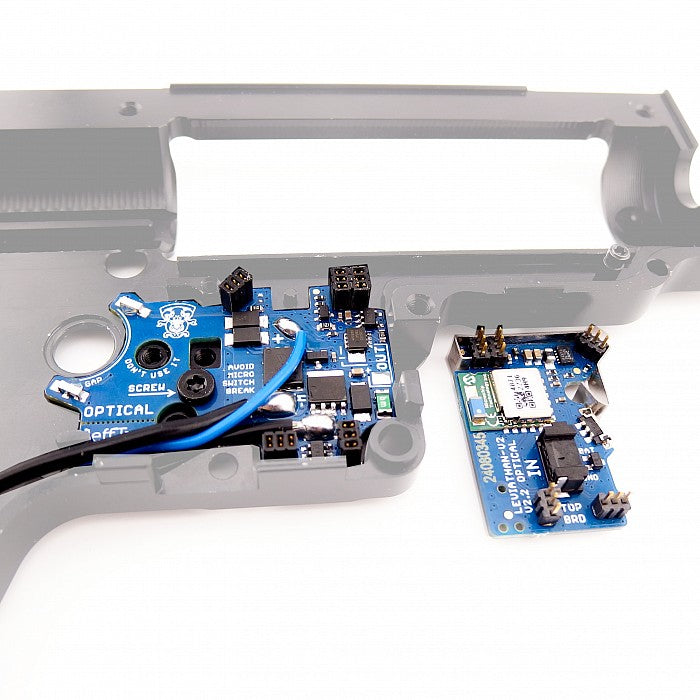

V2 Compatibility: Designed for Tokyo Marui-spec V2 gearboxes (M4, M16, MP5, G3, etc.); compatible with Krytac shells by removing a small section of the lower board.
