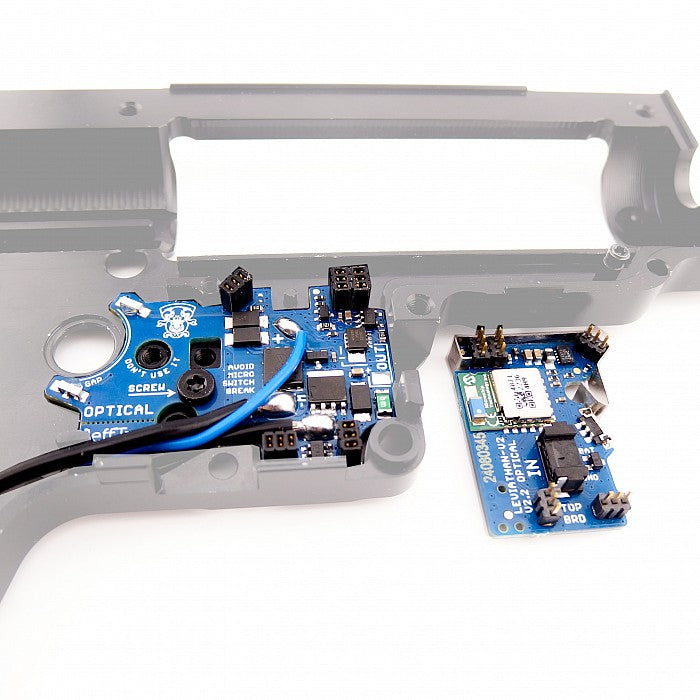

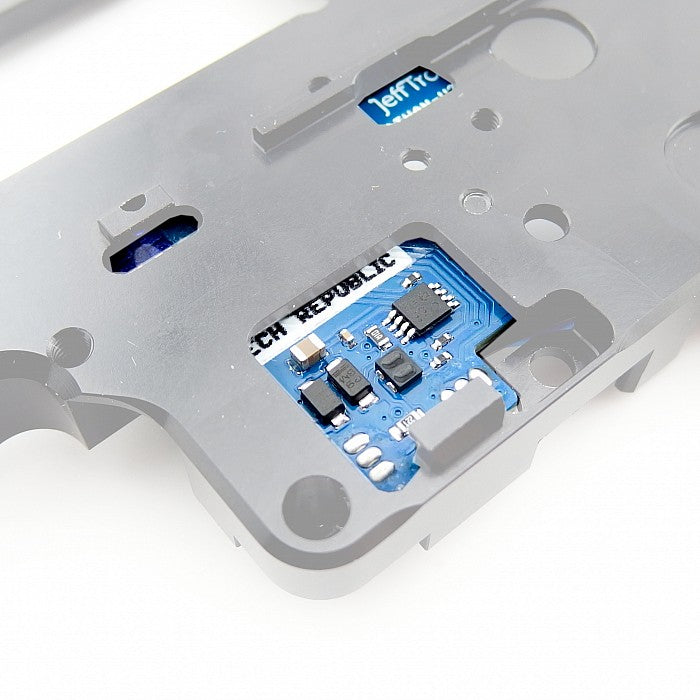

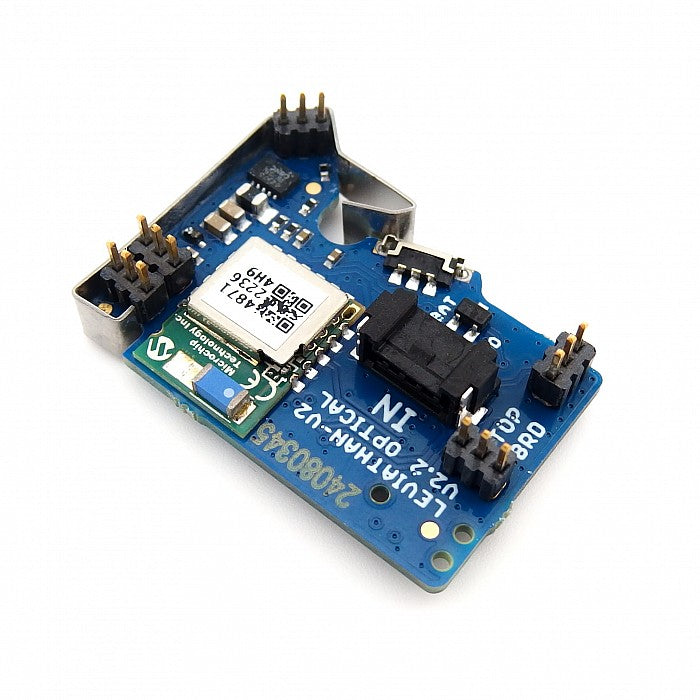

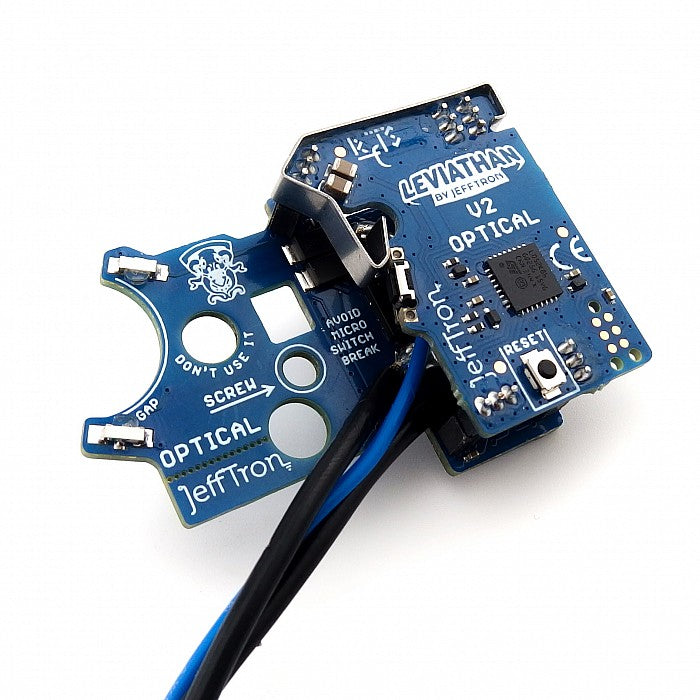

The Jefftron Leviathan V2 Optical is a professional-grade Electronic Trigger Unit (ETU) designed to replace the standard mechanical trigger contacts in Version 2 gearboxes. This rear-wired model is optimized for platforms where the battery is stored in the buffer tube or stock, such as the M4, AR15, and MP5 series. Utilizing high-precision optical sensors for the sector gear and fire selector, the unit provides near-instantaneous trigger response and eliminates mechanical wear. With its built-in Bluetooth module, users can perform real-time adjustments to firing modes, pre-cocking, and active braking through the official Leviathan smartphone app. It also features the integrated Real Feel Trigger System (RFTS), which uses a specialized spring to simulate the tactile break and reset of a real firearm. This is our preferred MOSFET here at Northmark Vault due to its adaptability in almost every single style of build! Whether you’re going for a realistic trigger feel and break or a CQB spam machine with a hair trigger, all of it can be achieved with this nifty AEG electrical unit!
Technical Specifications:

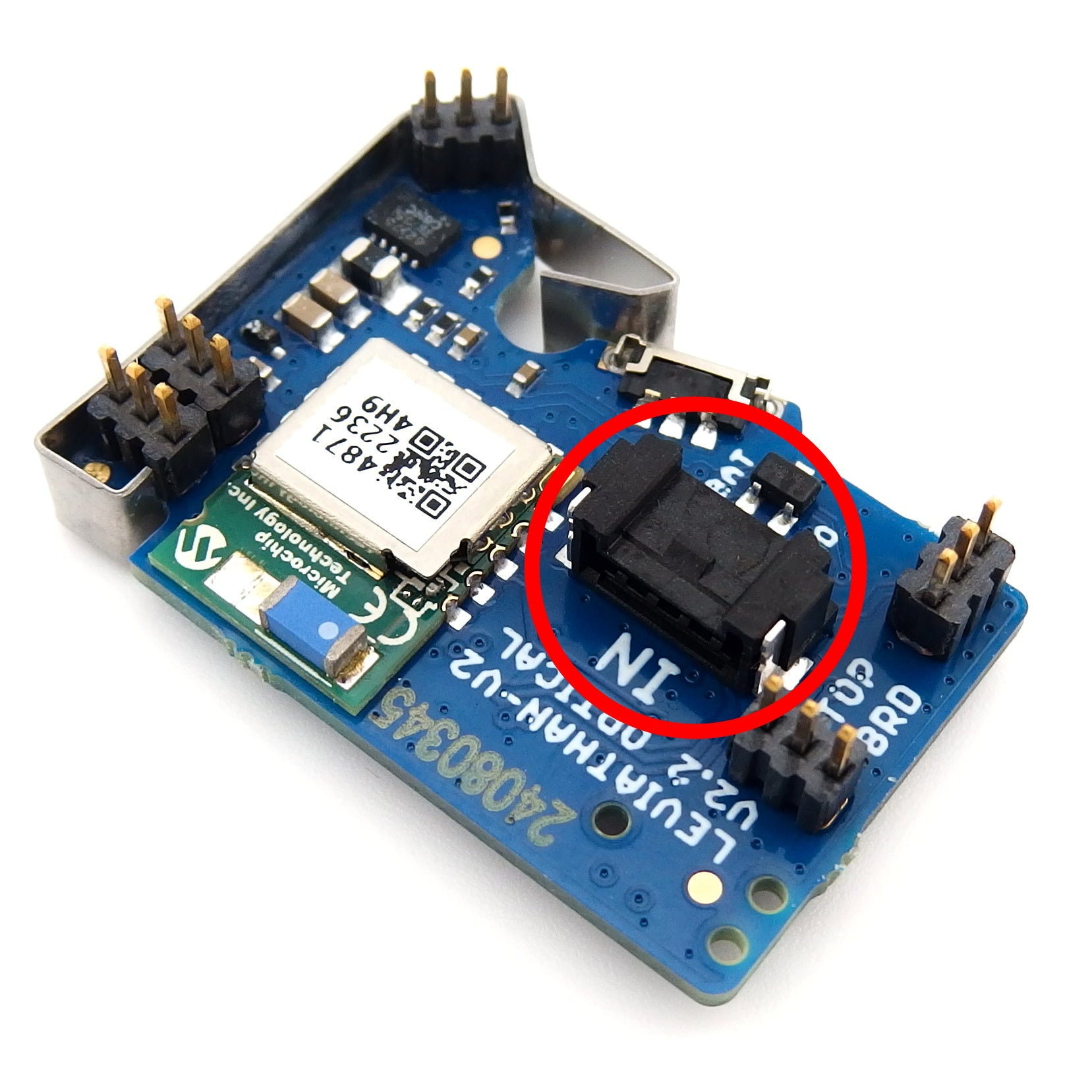

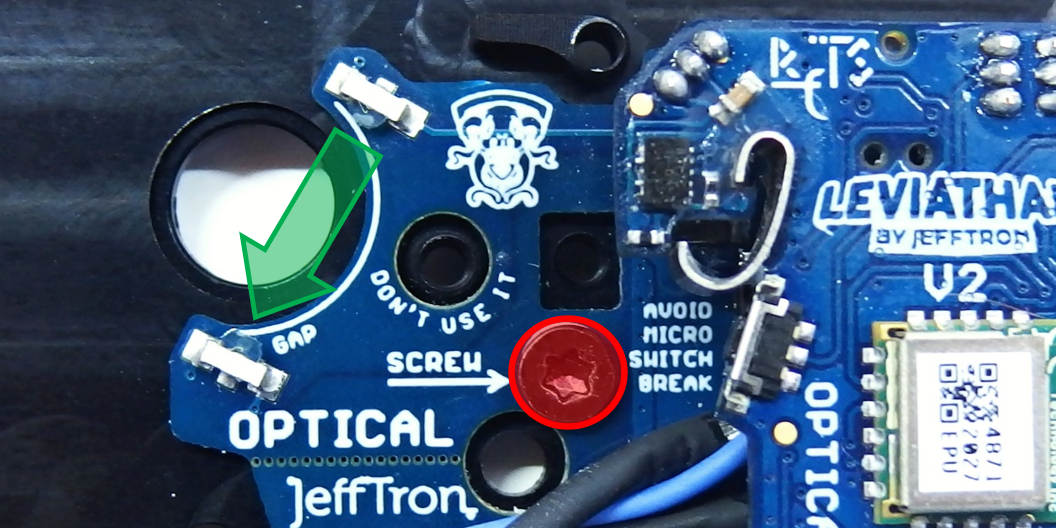

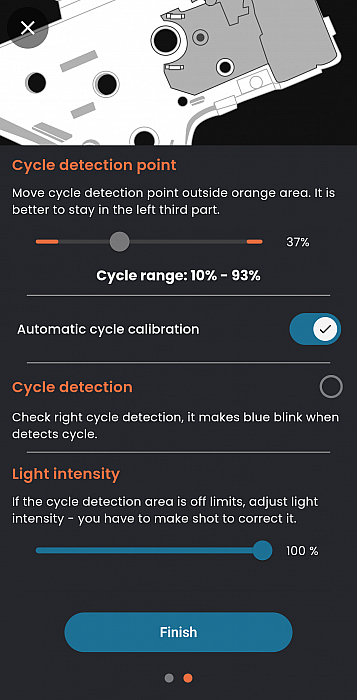

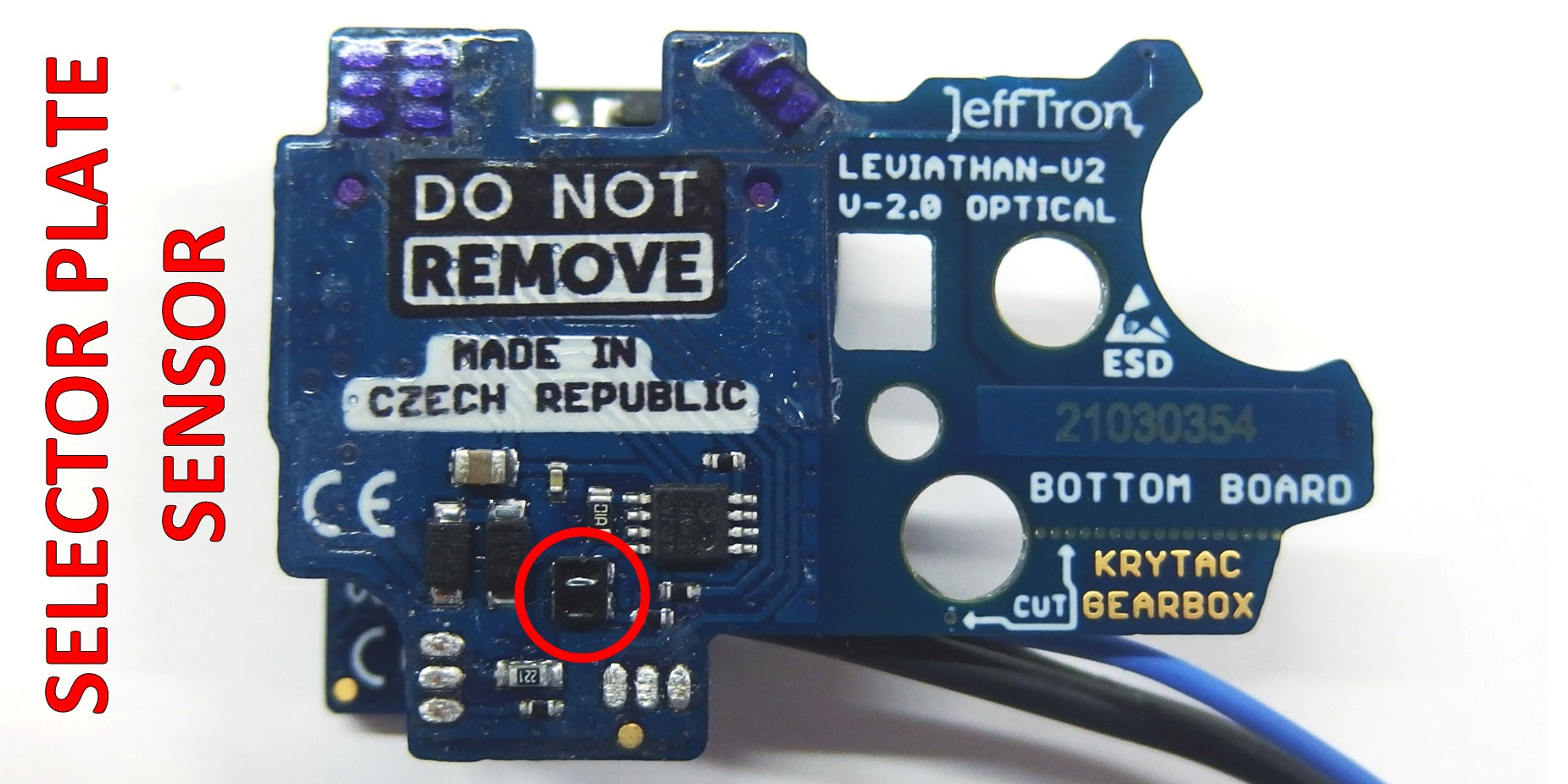

High-Speed Optical Sensors: Monitors the sector gear and fire selector plate for perfect cycle timing and zero mechanical friction.

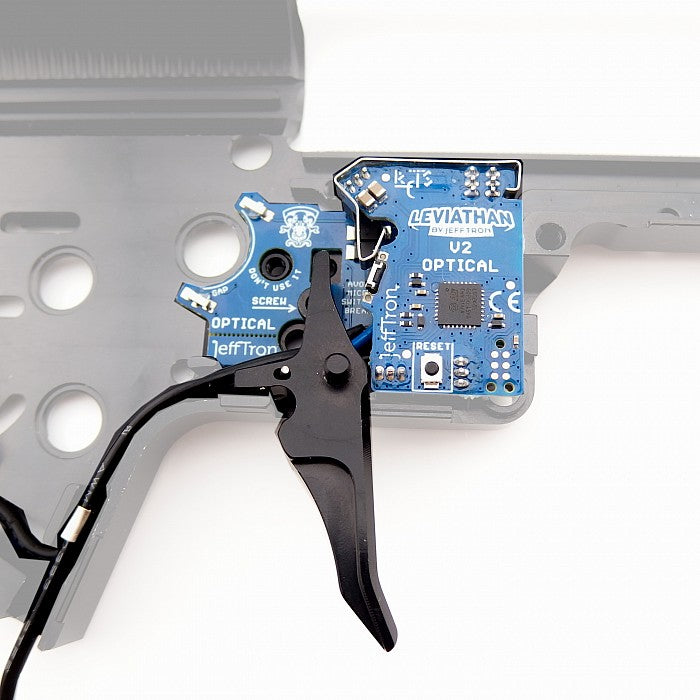

Integrated RFTS: Built-in Real Feel Trigger System mimics the physical resistance and "wall" of a real firearm trigger for enhanced realism.

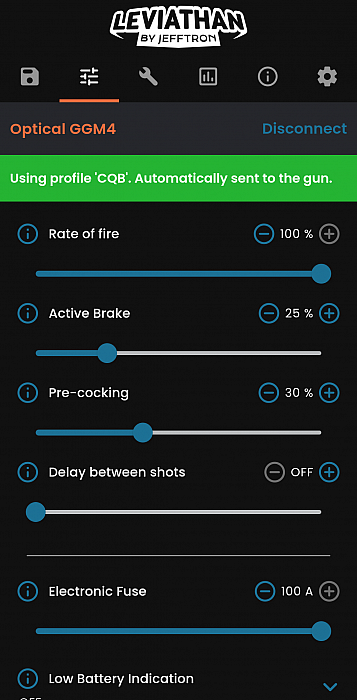

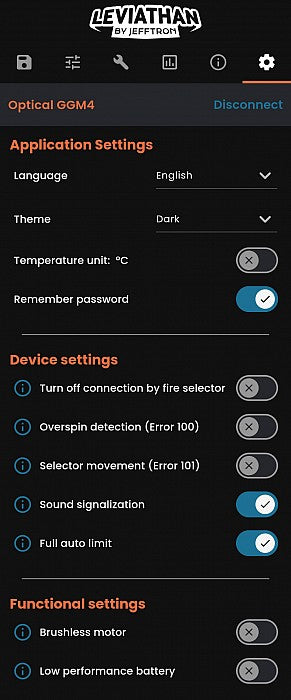

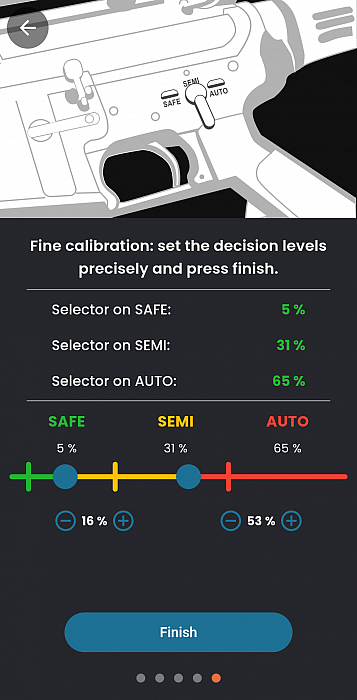

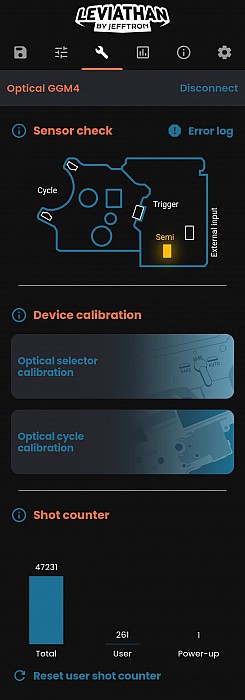

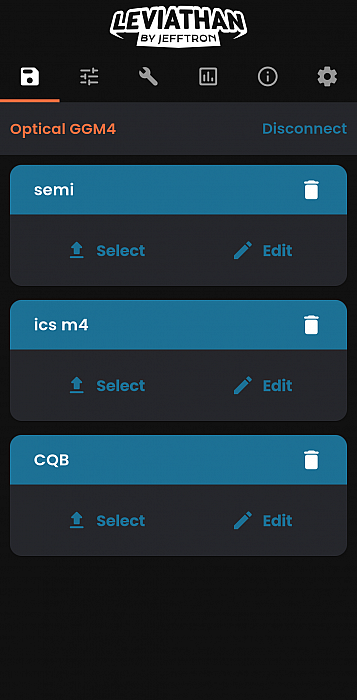

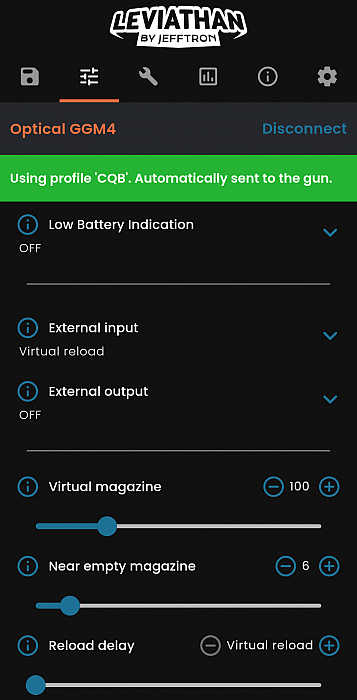

Wireless Programming: Internal Bluetooth allows for instant configuration of all settings via the Leviathan App for iOS and Android.

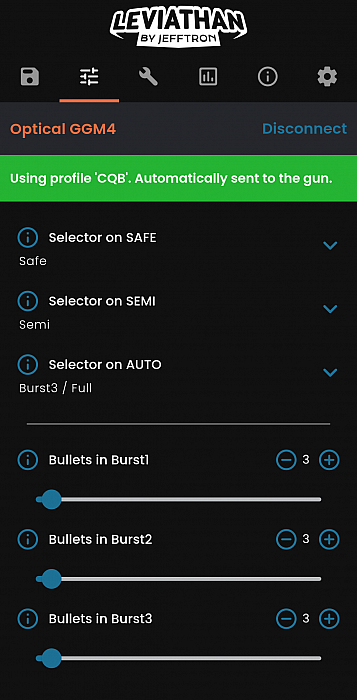

Performance Features: Includes adjustable piston pre-cocking, active braking, and digital rate of fire (ROF) reduction for realistic performance.

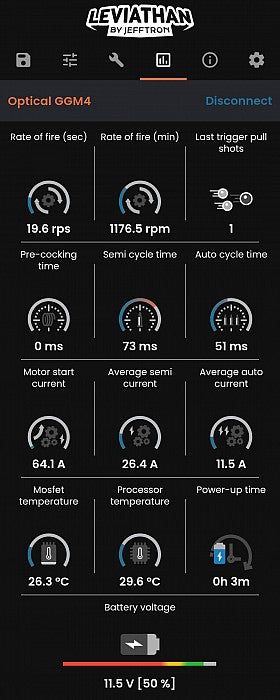

Advanced Protection: Monitors battery voltage (up to 17V), motor current, and temperature with an integrated electronic fuse to prevent system failure.

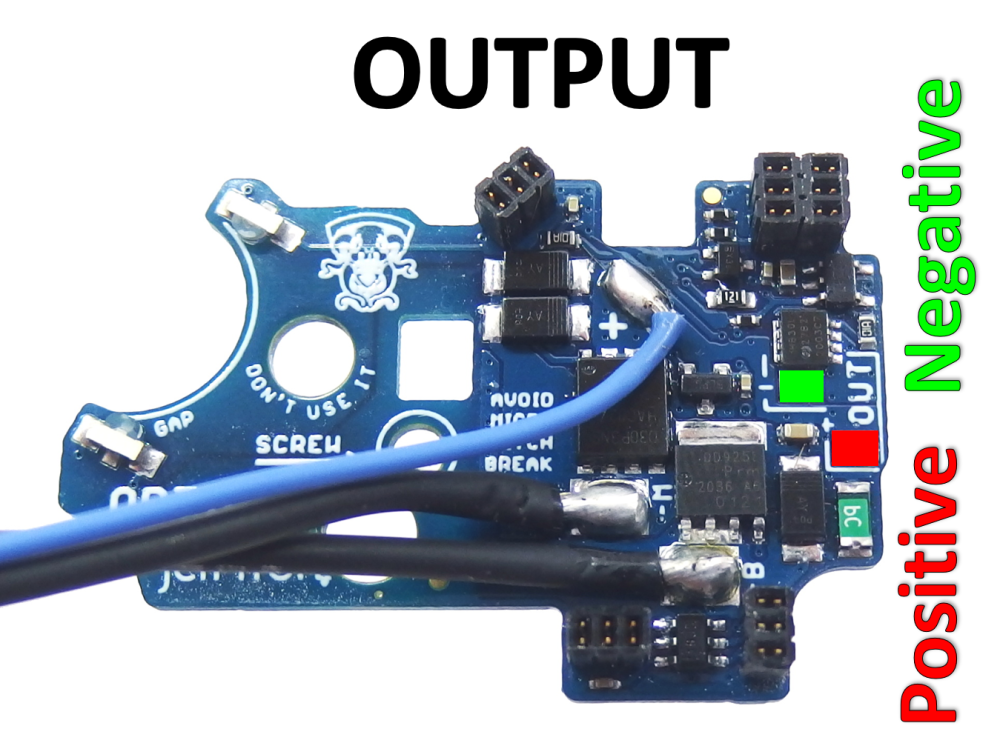

External Expansion: Features a dedicated port for external inputs and solder pads for controlling accessories like tracer units or electric magazines.

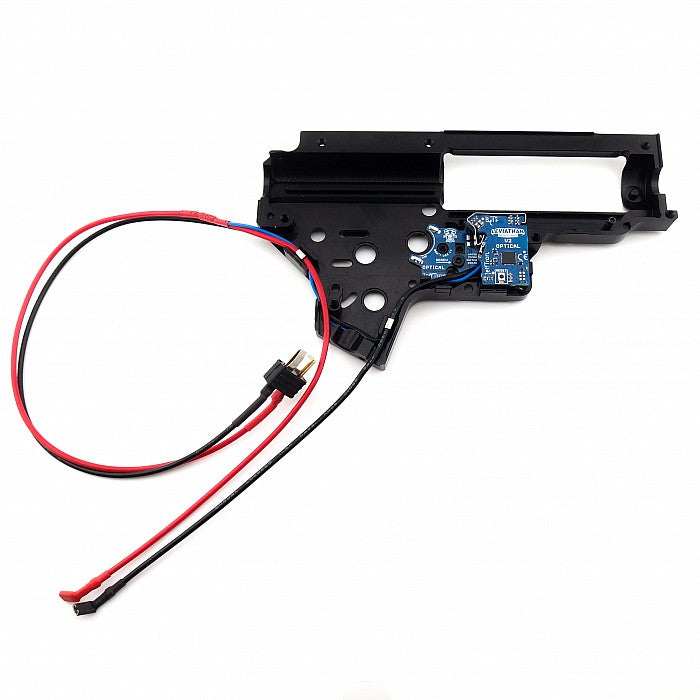

Professional Wiring: Pre-soldered with high-quality AWG16 power wires and AWG24 signal wires featuring thin, durable Teflon (PTFE) insulation.
