Jefftron V2 Leviathan & Scylla ETU Spare Wiring Harness

Jefftron V2 Leviathan & Scylla ETU Spare Wiring Harness

$20.00 USD
$20.00 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.

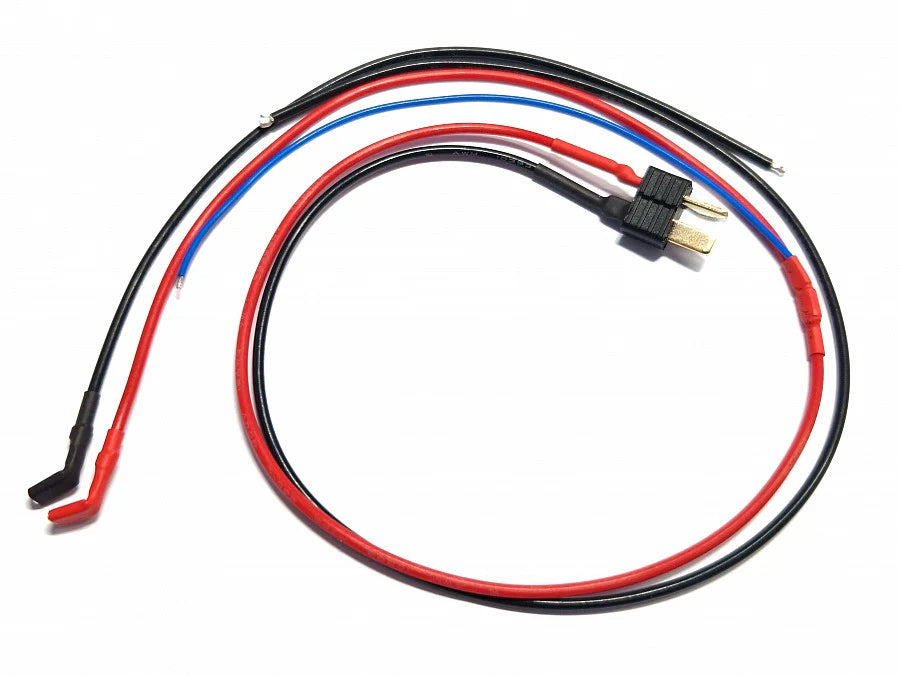

The Jefftron V2 Spare Wiring Harness is an original replacement component designed specifically for the Leviathan V2 Optical and Scylla V2 Electronic Trigger Units (ETU). This professionally manufactured harness allows for a "no-soldering" restoration or modification of your existing ETU setup, whether transitioning between front-wired and rear-wired configurations or simply replacing damaged wires. Constructed with high-grade materials to minimize electrical resistance, this harness ensures that your high-performance ETU continues to deliver rapid trigger response and reliable communication between the battery, motor, and processor board.

Technical Specifications:

  • Power Wiring: High-quality 1.5 qmm (AWG16) power wires featuring thin and hard Teflon (PTFE) or MPPE insulation for maximum durability and easy routing in tight gearbox spaces.
  • Signal Wiring: Includes a blue signal wire of 0.34 qmm (AWG24) with matching high-performance insulation.
  • Compact Dimensions: Power wires have an outer diameter of only 2.08–2.10 mm, while the signal wire is just 1.28–1.30 mm, facilitating easier cable management.
  • Harness Length: Features a total wire length of 270mm between the gearbox exit and the battery connector, providing ample reach for various stock types.
  • Connector Type: Pre-soldered with a high-current Deans (T-Plug) connector for reliable power transfer and battery compatibility.

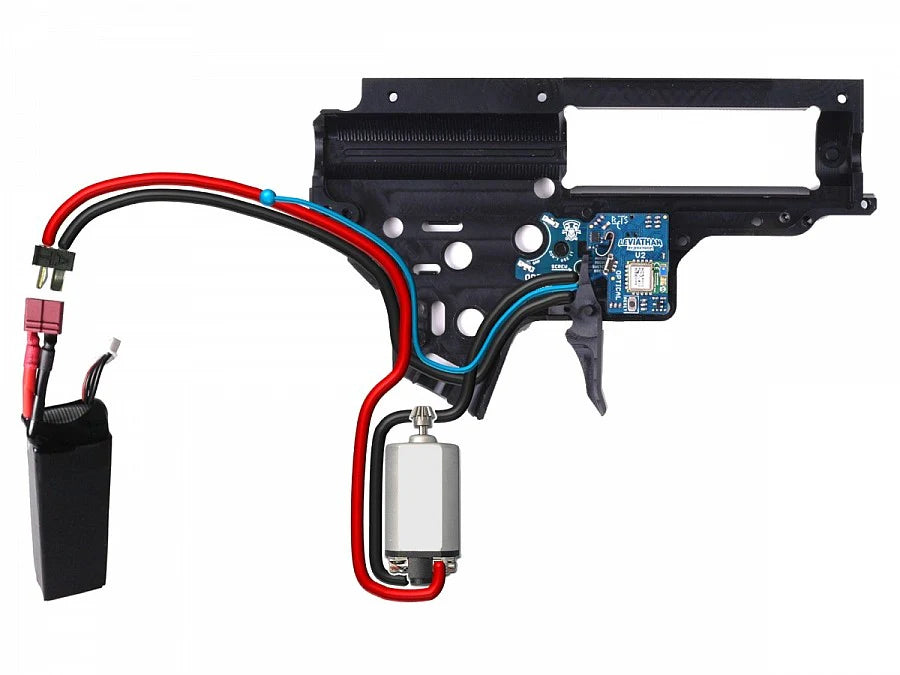

  • Variant Options: Available in Rear-Wired (to Stock) or Front-Wired versions; front-wired models include specialized plugs to allow for easy handguard disconnection.
  • Integrated Fuse Option: Specific variants are available with a built-in electronic fuse to protect the ETU board from motor short circuits or over-current events.
  • Platform Compatibility: Engineered for a direct fit with Jefftron Leviathan V2 Optical and Jefftron Scylla V2 boards.
