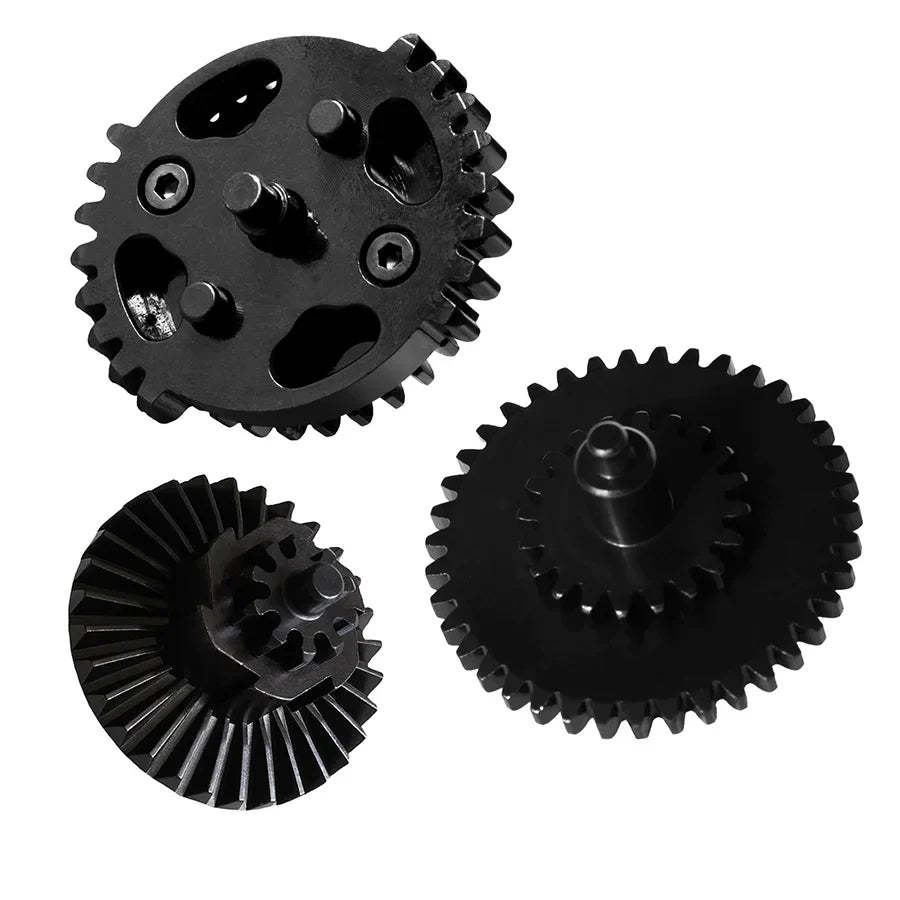

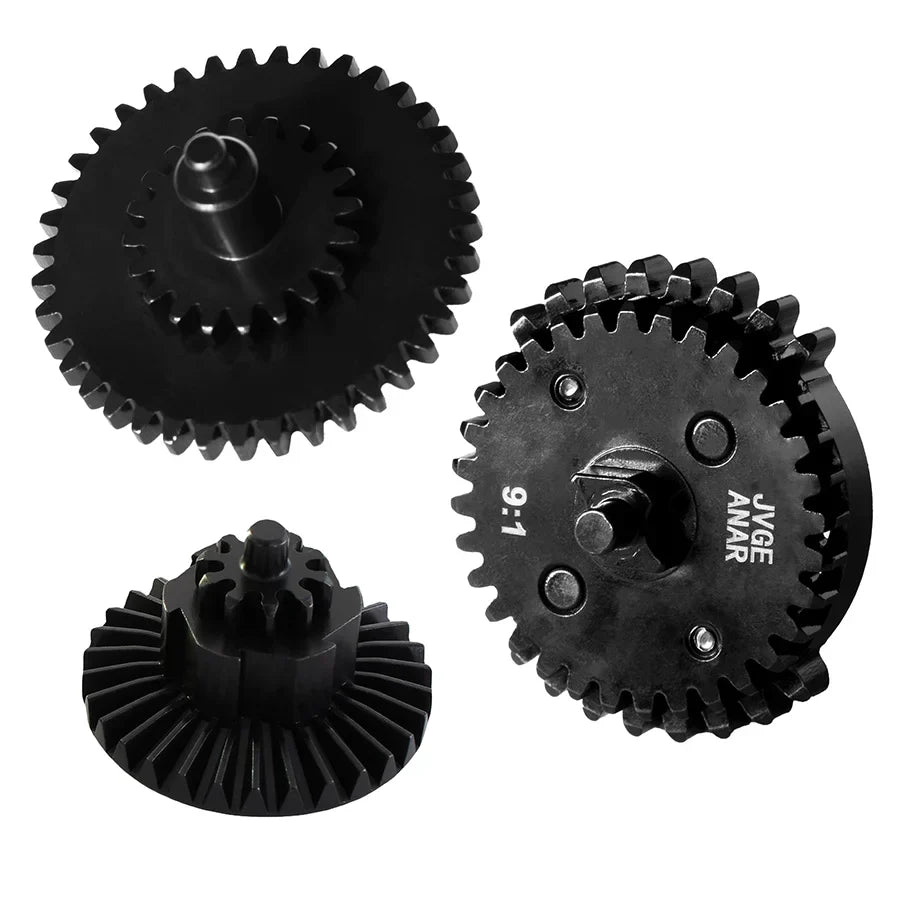

JVAN CNC Steel 9:1 Ultra-High Speed Dual Sector Gear (DSG) Set

JVAN CNC Steel 9:1 Ultra-High Speed Dual Sector Gear (DSG) Set

$38.00 USD
$38.00 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.
The JVAN 9:1 DSG Gearset is an extreme-performance internal drivetrain engineered for professional-grade airsoft builds requiring the highest achievable rate of fire. Manufactured by JVA) using advanced CNC machining, this set features a Dual Sector Gear that cycles the piston twice for every single rotation of the sector gear. The gears are milled from high-density 40Cr steel and subjected to a multi-stage heat treatment process to handle the intense mechanical stress of rapid cycling. This 9:1 ratio provides elite-level trigger response and is designed for technicians who demand precision-cut tooth geometry and superior drivetrain durability for specialized high-speed configurations.

Technical Specifications:

  • Precision Manufacturing: Sector and spur gears are fully CNC-milled from 40Cr steel; the bevel gear features a CNC-machined center shaft for maximum alignment.
  • Extreme Speed Ratio: 9:1 gear ratio combined with a Dual Sector Gear (DSG) architecture for nearly instantaneous cycle completion.
  • 8-Tooth DSG Profile: Features a dual 8-tooth gear rack configuration on the sector gear, specifically designed to double the rate of fire relative to motor RPM.
  • Material Hardness: Components are heat-treated to HRC 42–50 for the gear teeth and HRC 55–60 for the shafts to prevent deformation under high-stress loads.
  • Surface Treatment: Finished with a professional polishing and blackening process to ensure a low-friction surface and enhanced wear resistance.
  • Refined Geometry: Optimized tooth shapes with 15° chamfering to reduce friction and minimize mechanical noise during extreme-speed rotation.
  • Universal Compatibility: Engineered for standard Version 2 and Version 3 gearboxes (M4, AK, MP5, etc.) utilizing 3mm gear axles.
  • Northmark Vault Recommendation: Due to the 8-tooth stroke, a high-tension spring is required to maintain desired muzzle energy and prevent Piston Pre-Engagement (PME).
