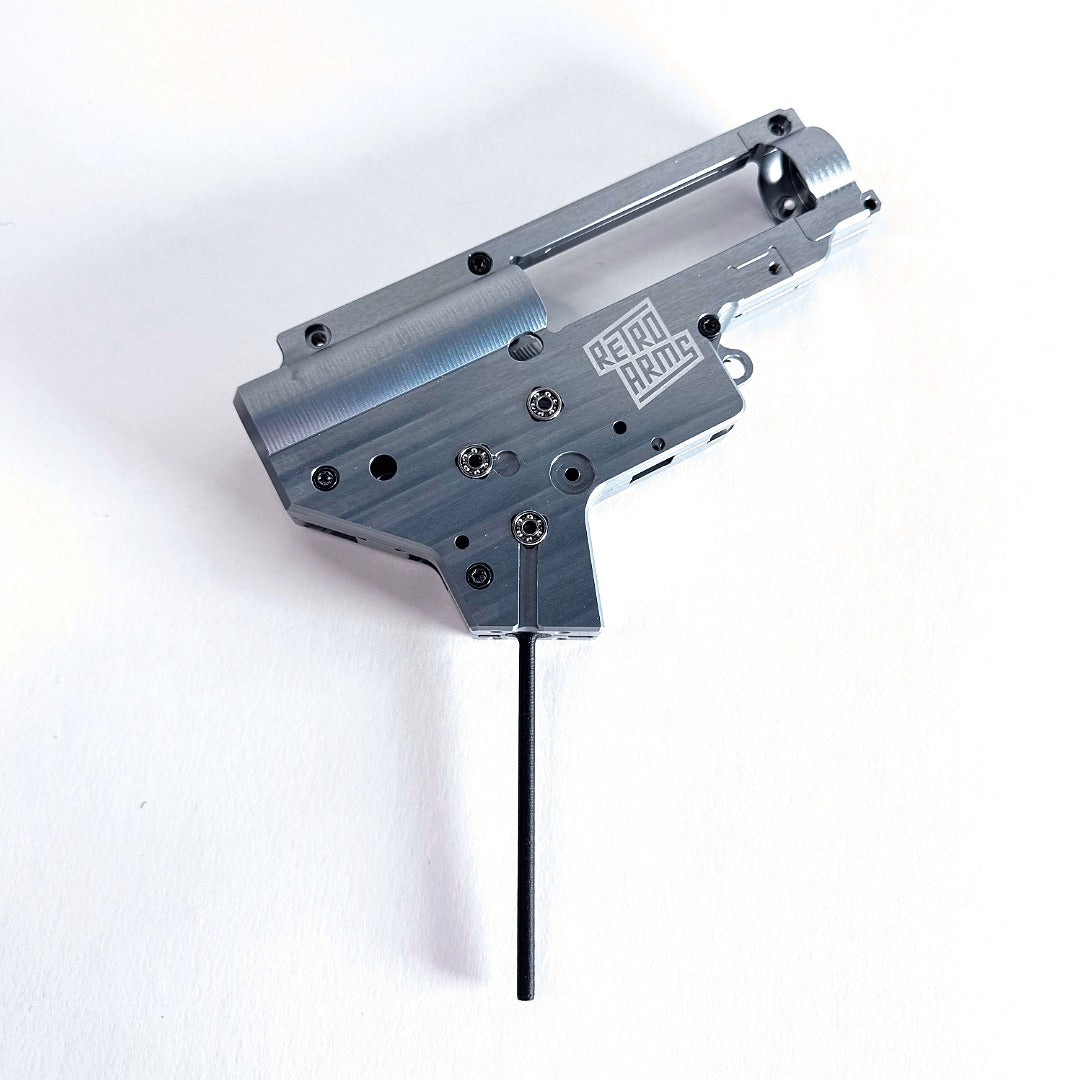

• Northmark Vault AEG Motor Alignment Tool for V2 Gearbox Motor Angle Correction

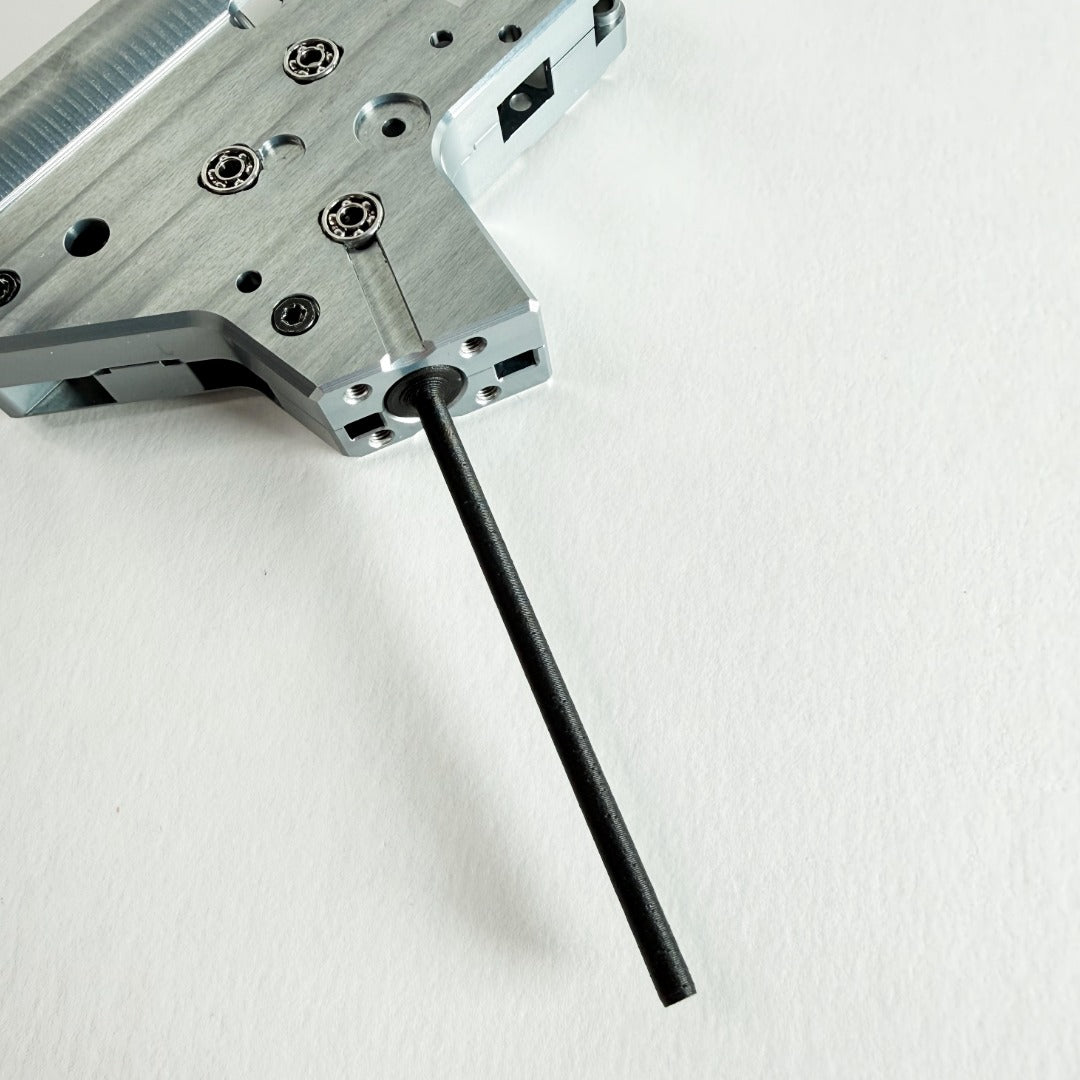

  • Triple indicator system on the Northmark Vault motor tool for precise gear mesh alignment

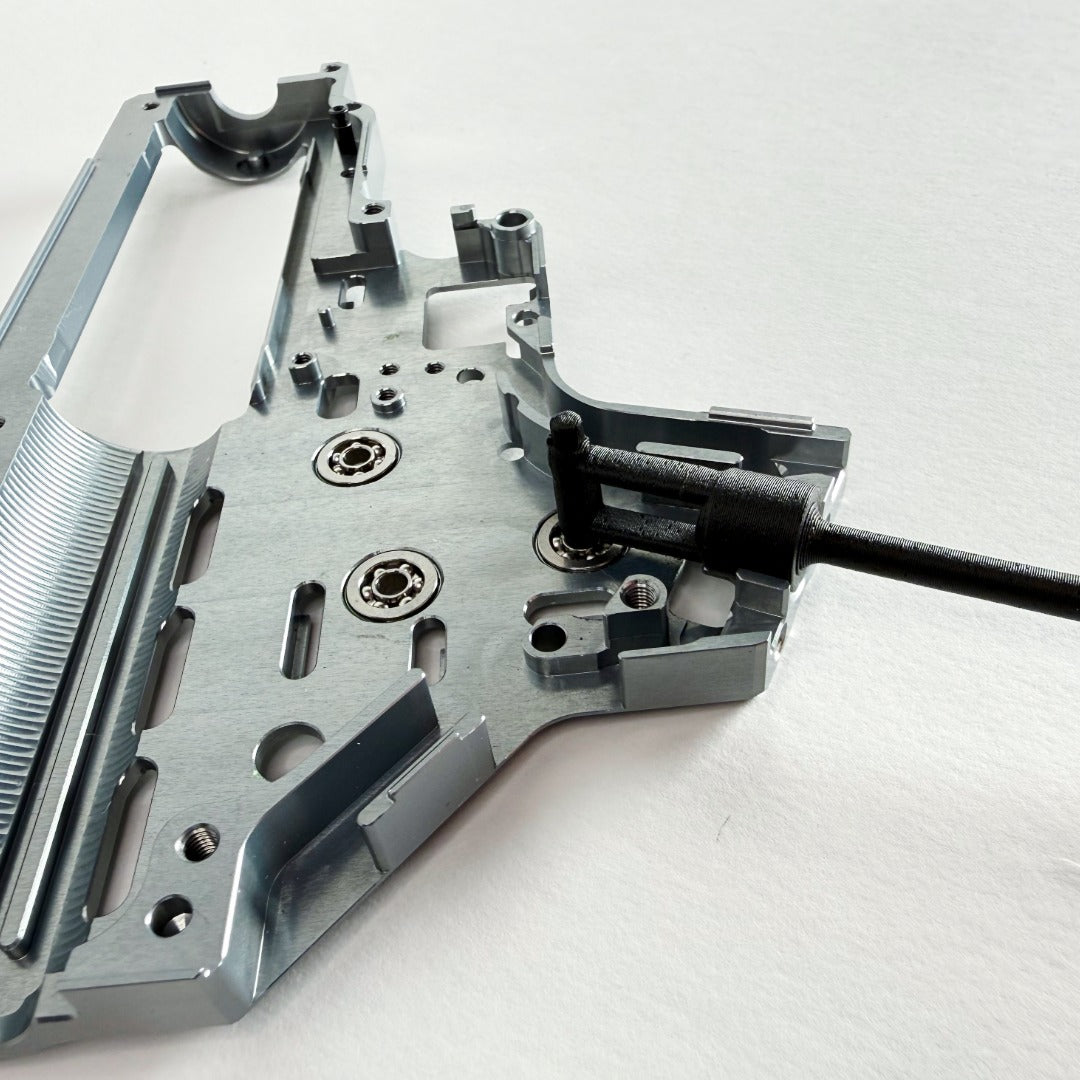

  • Carbon fiber reinforced AEG motor alignment tool compatible with Retro Arms shells

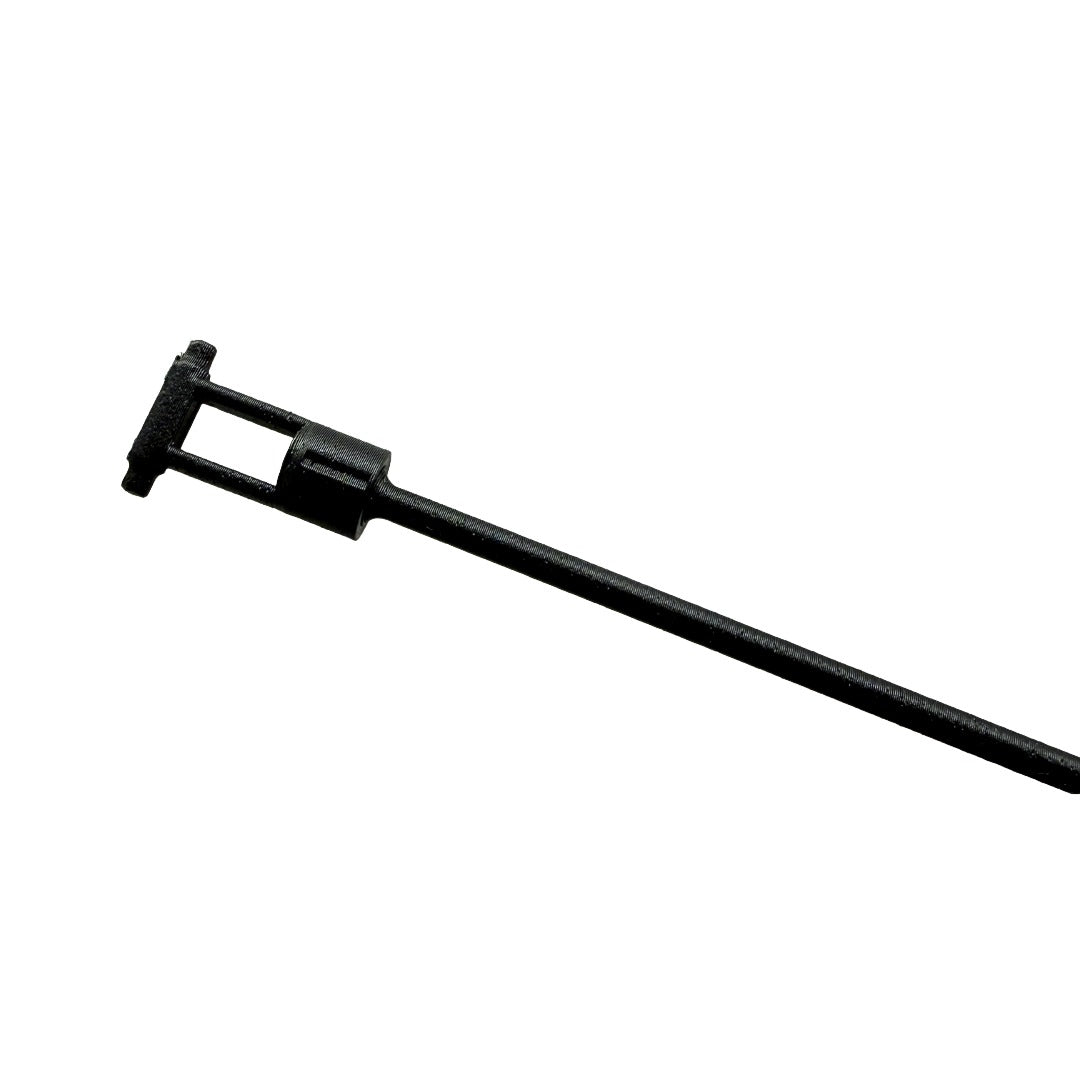

  • Durable carbon fiber reinforced AEG motor tool for long-term shop use and precision teching

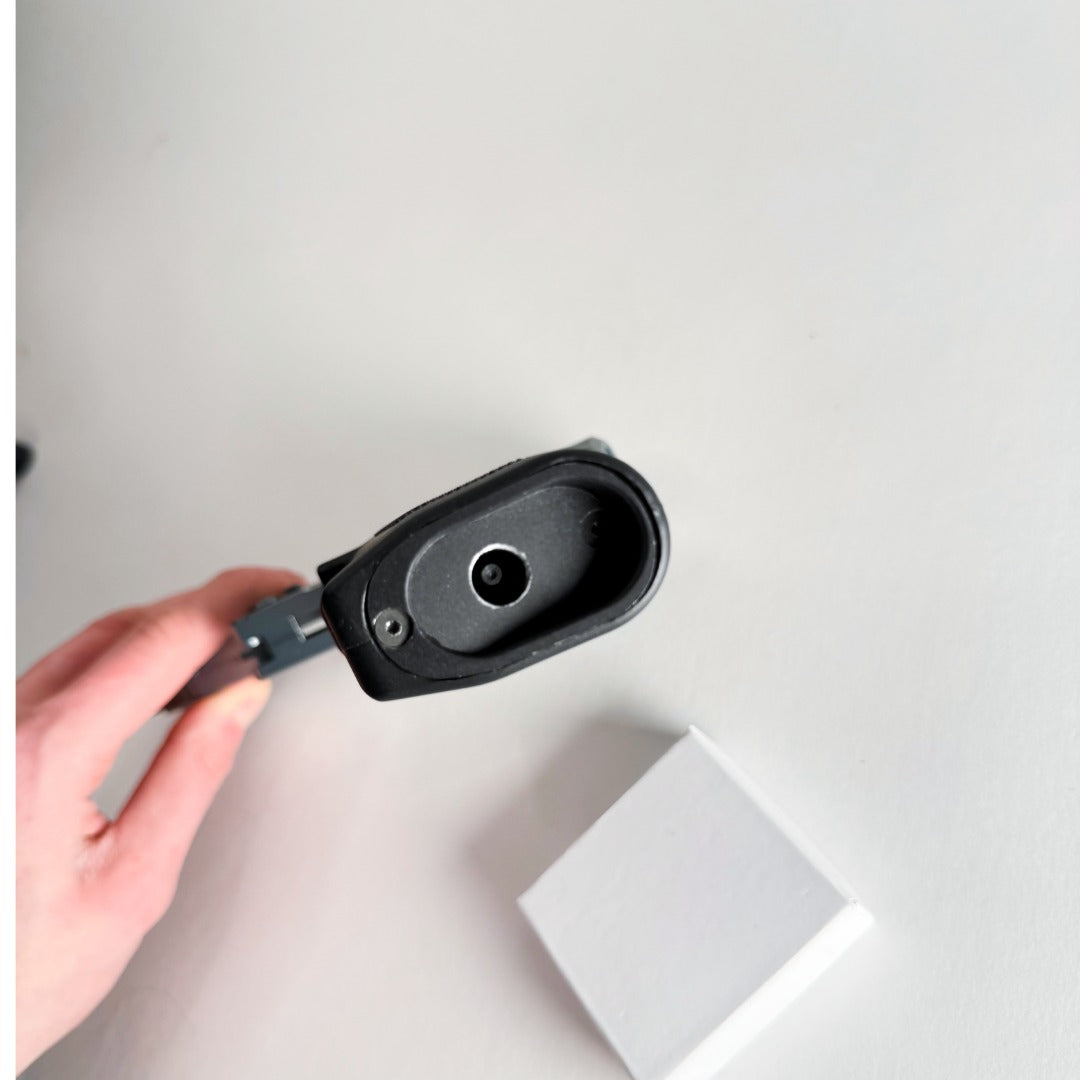

  • Precision fitment of the Northmark Vault motor tool on Retro Arms V2 gearbox shells
1 5

Northmark Vault

Northmark Vault AEG Motor Alignment Tool (V2)

Northmark Vault AEG Motor Alignment Tool (V2)

$12.99 USD
$12.99 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.
Sizes
The Northmark Vault AEG Motor Alignment Tool is a precision diagnostic instrument designed to solve one of the most common causes of drivetrain noise and premature wear: improper motor angle. Engineered for Version 2 gearboxes, this tool allows technicians to verify if the pistol grip holds the motor at the correct angle relative to the bevel gear. By installing the tool directly into the gearbox bushing and motor axle opening, you can visually confirm if the shaft centers perfectly within the motor plate adjustment hole. This ensures optimal gear mesh, reduces electrical draw, and extends the life of both the pinion and bevel gears.

Technical Specifications:

  • Material Construction: 3D-printed using Carbon Fiber Reinforced PLA for maximum rigidity, high dimensional stability, and resistance to warping.
  • Indicator System: Features a Triple Indicator System with three separate marks to easily confirm the straightness of the shaft during use.
  • Precision Sizing: Available in multiple bore diameters, including 10mm for Retro Arms V2 shells and 9.7mm for standard shells like Krytac, ensuring a zero-play interface.
  • Concentric Design: Manufactured using a Support-Free Print Design to maintain maximum concentricity and alignment accuracy.
  • High-Visibility End: Includes a Dimpled Shaft End for improved visibility when looking through the motor plate screw hole.
  • Workshop Integration: Designed with a Hollow Center Support for easy storage on pegboards or tech station hooks.
  • Flush Base Geometry: Features a Flush Motor Base Design that allows for a proper fit across a wide variety of aftermarket AEG motor grips.
  • Durable Build: Printed with 100% infill to provide a solid, long-lasting tool that survives repeated use in a professional workshop environment.
