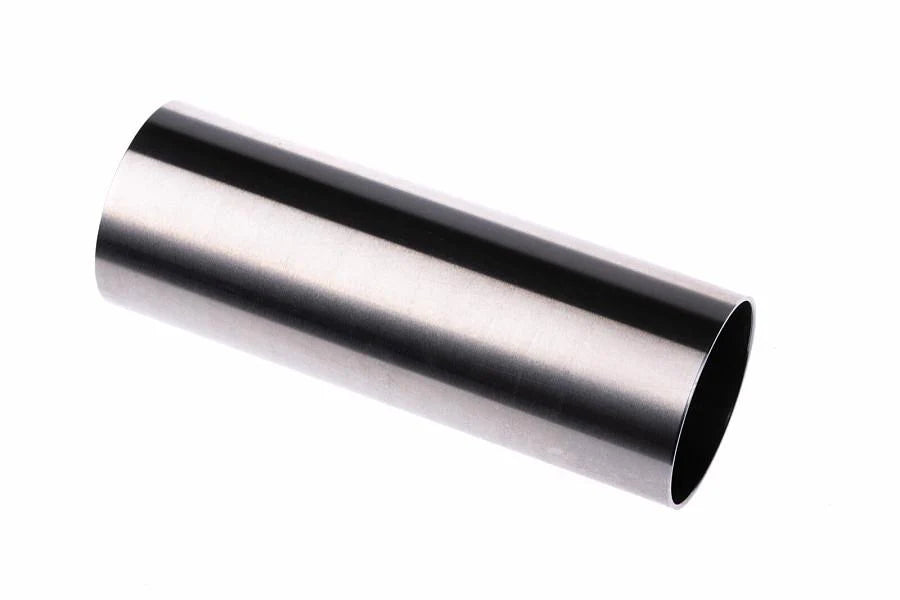

Retro Arms CNC Stainless Steel Cylinder Type D (370mm–650mm)

Retro Arms CNC Stainless Steel Cylinder Type D (370mm–650mm)

$18.00 USD
$18.00 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.
The Retro Arms CNC Stainless Steel Cylinder Type D is a high-precision internal compression component designed for long-barrel AEG and DMR builds. Precisely machined from high-grade stainless steel, it undergoes a specialized thermochemical treatment to achieve a surface hardness of 630 HBA, ensuring extreme wear resistance and a long service life. The internal bore is finished to a high polish to minimize frictional resistance against the piston head O-ring, while its larger internal diameter offers a "bore up" style profile for increased air volume. While air volume is ultimately dependent on both your chosen BB weight and barrel length, this Type D cylinder provides the optimal volume outline for long platforms with inner barrels ranging from 370mm to 650mm.

Technical Specifications:

  • Recommended Barrel Length: 370mm – 650mm (Approximate outline for long-range builds).
  • Material: CNC-machined Stainless Steel with 630 HBA thermochemical hardening.
  • Internal Profile: Enlarged "bore up" style internal diameter for maximum air volume.
  • Finish: High-polish internal bore for reduced friction and consistent air seal.
  • Type: Type D (Non-ported / Full).
  • Compatibility: Standard Tokyo Marui-spec gearboxes; specifically optimized for Retro Arms gearbox shells.
  • Northmark Vault Tech Tip: Because this features a larger internal diameter, Northmark Vault recommends ensuring your piston head O-ring provides a proper seal for this bore up profile. Air volume requirements also shift based on BB weight; heavier BBs may require this full volume even on shorter barrels.
