TopMax ERGAL CNC Cylinder Head for Marui SRE bundle with 5 PADs (TCMMV2RP5-SRE)

TopMax ERGAL CNC Cylinder Head for Marui SRE bundle with 5 PADs (TCMMV2RP5-SRE)

$29.55 USD
$29.55 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.

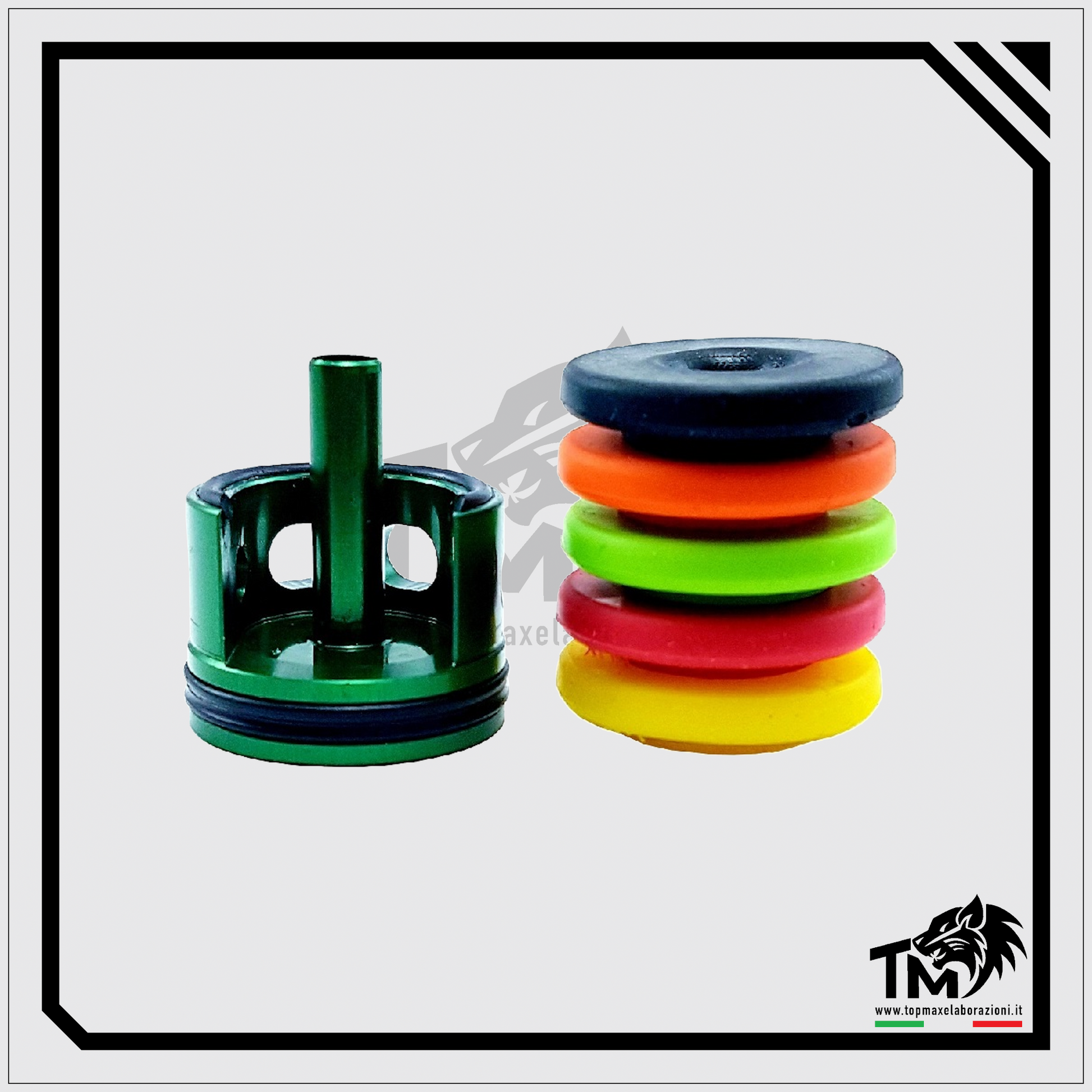

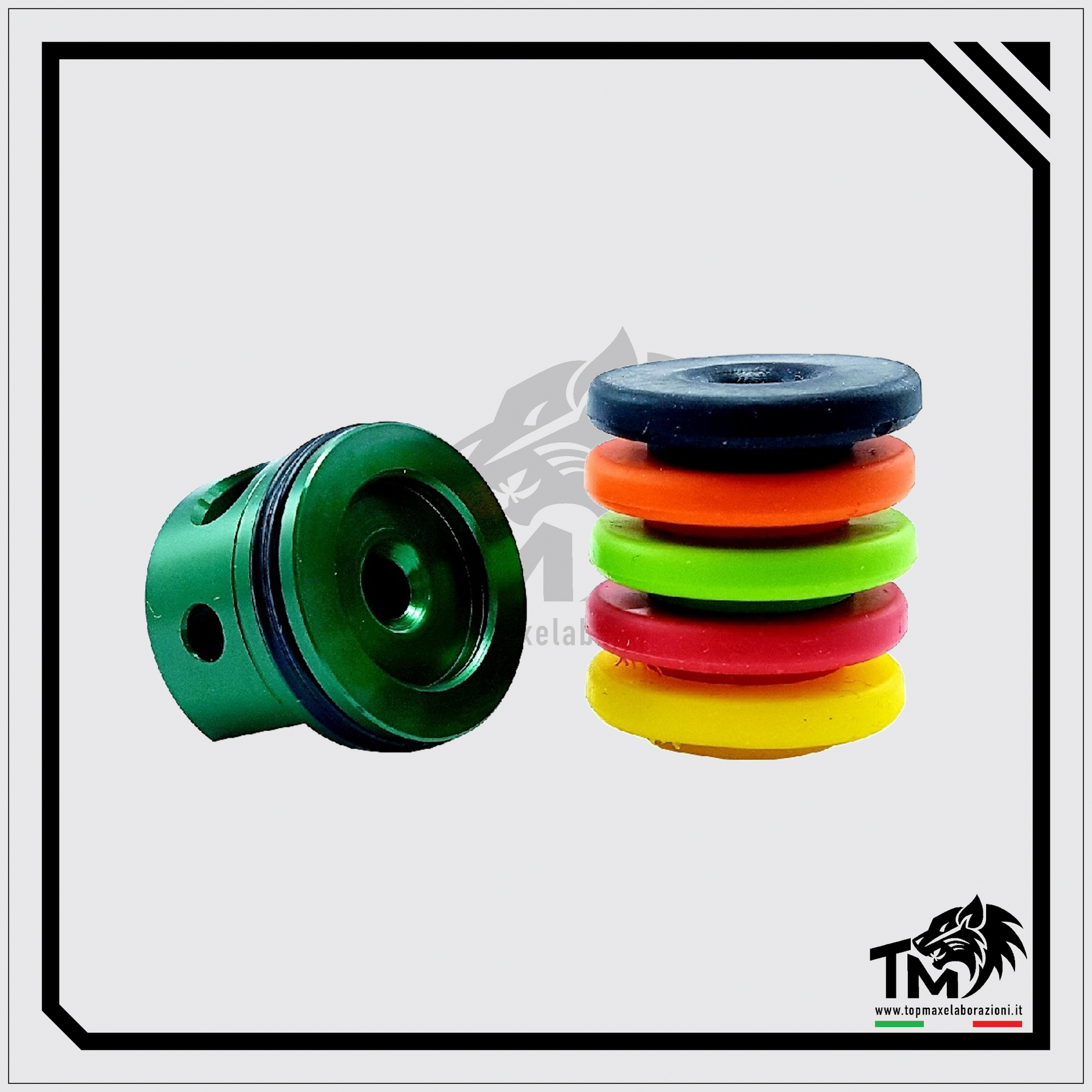

The TopMax ERGAL CNC Cylinder Head Bundle is an advanced compression solution specifically engineered for the Tokyo Marui Next Generation Recoil Shock (NGRS/SRE) platform. Precision-machined from ERGAL (7075 aluminum alloy), this cylinder head features a specialized anti-vibration design with milled upper sections to mitigate the impact shock on the gearbox plates, effectively reducing the risk of shell failure. This "RP5" bundle includes a unique system of five interchangeable rubber impact pads (PADs) of varying hardness levels, allowing technicians to fine-tune the gearbox for specific rates of fire and spring tensions. Each pad is designed to provide an optimal Angle of Engagement (AOE) while the innovative conical interior geometry ensures a stabilized and accelerated airflow into the elongated spout.

Technical Specifications:

  • Material Construction: CNC-machined from a solid block of high-strength ERGAL 7075 aluminum alloy for maximum structural rigidity.
  • Interchangeable PAD System: Includes 5 interchangeable rubber pads (Yellow, Cherry, Green, Orange, Black) to manage configurations from 10 to 40+ BB/s and springs from M85 to M150.
  • Sealing Technology: Equipped with a specialized Quad-Ring to ensure a superior airtight seal against the cylinder walls.
  • Optimized Airflow: Features a conical internal profile that works in tandem with the pad's shape to focus air into the spout for faster output.
  • Spout Dimensions: Features an external diameter of 4.70mm with a rounded top for reduced nozzle friction and an elongated length for linear nozzle travel.
  • Vibration Mitigation: Integrated upper body millings designed to absorb and dampen the impact energy transmitted to the gearbox shell.
  • AOE Correction: The calibrated thickness of the interchangeable pads is designed to achieve a perfect Angle of Engagement without the need for additional shims.
  • Platform Compatibility: Specifically optimized for the Tokyo Marui NGRS (SRE) series, including M4, HK416, and SCAR platforms.
